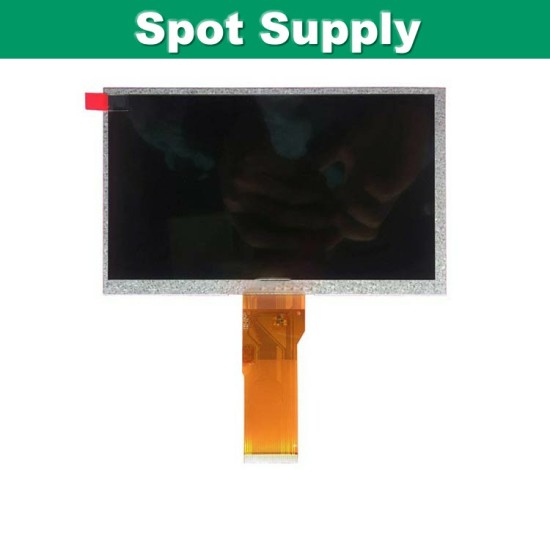

Name: TIANMA 7 inch 800x480 TFT LCD RGB Module TM070RDH10-40 with 450 nits and FPC 50 pin
Brand: INNoLux
SKU: TM070RDH10-40
Price: 999.99 USD
Availability: InStock

TIANMA 7 inch 800x480 TFT LCD RGB Module TM070RDH10-40 with 450 nits and FPC 50 pin

Stock: In Stock
Brand: INNoLux
Model: TM070RDH10-40
Weight: 0.75kg
Dimensions: 32.00cm x 22.00cm x 9.00cm
SKU: TM070RDH10-40
UPC: TM070RDH10-4
JAN: TM070RDH10-40
ISBN: TM070RDH10-40
MPN: TM070RDH10-40

Products Sold: 0

Product Views: 77

0 reviews - Write a review

$999.99

Ex Tax: $999.99

Price in reward points: 35

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Manufacturer	TIANMA
Model Name	TM070RDH10-40
Screen Size	7 inch
Pixel Number	800(RGB)×480, WVGA
Active Area(mm)	154.08 (W) x 85.92 (H×V)
Outline(mm）	164.9 x 100 x 5.7 (H×V×D)
Pixel pitch(mm)	0.1926 x 0.179 mm (H×V)
Treatment	Anti Glare
Luminance	450 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	80/80/60/80 (CR≥10) Left / Right/UP /Down
Response	15 (Typ.)(Tr/Td) ms
Work Mode	TN, Normally white, Transmissive
Color Depth	262K/16.7M,50% NTSC
Backlight	WLED,20K hours,without driver
Net Weight	160g
Touchscreen	without
Signal Type/interface Type	Parallel RGB (1 ch, 6/8-bit),FPC,50 pins
Voltage Supply	3.3V
Max. Ratings	Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C)
Package	TIANMA original package; 50 pcs/ctn; weight : TBD; size : 530(L)mm x 350(W)mm x 250(H)mm
