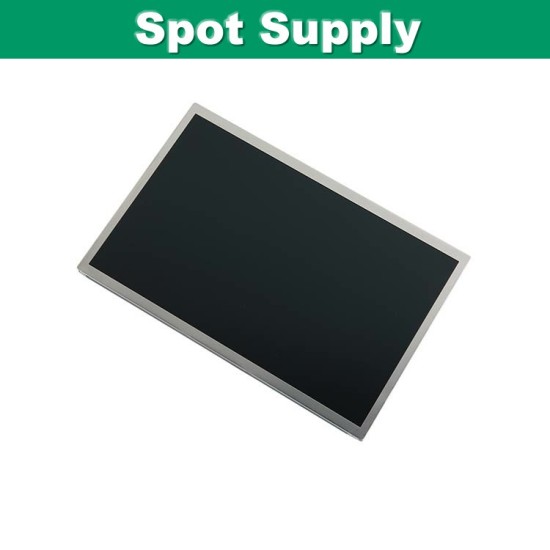

Name: Innolux 10.1 Inch 1280x800 TFT LCD Panel IPS Display For Industry G101ICE-L02 With LVDS 30pins
Brand: INNoLux
SKU: G101ICE-L02
Price: 999.99 USD
Availability: InStock

Innolux 10.1 Inch 1280x800 TFT LCD Panel IPS Display For Industry G101ICE-L02 With LVDS 30pins

Stock: In Stock
Brand: INNoLux
Model: G101ICE-L02
Weight: 0.75kg
Dimensions: 32.00cm x 22.00cm x 9.00cm
SKU: G101ICE-L02
UPC: G101ICE-L02
JAN: G101ICE-L02
ISBN: G101ICE-L02
MPN: G101ICE-L02

Products Sold: 0

Product Views: 40

0 reviews - Write a review

$999.99

Ex Tax: $999.99

Price in reward points: 28

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Manufacturer	Innolux
Model Name	G101ICE-L02
Screen Size	10.1 inch
Pixel Number	1280(RGB)×800,WXGA
Active Area(mm)	216.96 x 135.60 (H×V)
Outline(mm）	231 x 153.5 x 8.5 (H×V×D)
Pixel Pitch(mm)	0.1695 x 0.1695 mm (H×V)
Treatment	Hard Coating (3H), Anti-Glare
Luminance	500 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85(CR≥10) Left / Right/UP /Down
Response time	14/11 (Typ.)(Tr/Td) ms
Display Mode	AAS,Normally black, Transmissive
Color Depth	262K/16.7M,52% NTSC
Backlight	WLED, 50K hours, with LED Driver
Net Weight	350g
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8-bit),30 pins
Voltage Supply	+3.3V
Max. Ratings	Storage Temp.: -25 ~ +70 (°C) Operating Temp.: -20 ~ +70 (°C)
Package	Innolux Original package; 28 pcs/box; size : 490(L)mm x 320(W)mm x 250(H)mm; weight : 12.02Kgs
