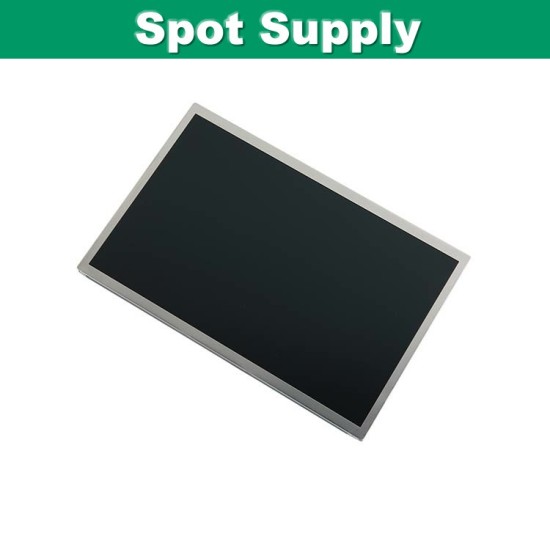

Name: Innolux 10.1 inch 1280x800 TFT LCD Panel IPS Display G101ICE-L01 LVDS interface 40pins
Brand: INNoLux
SKU: G101ICE-L01
Price: 999.99 USD
Availability: InStock

Innolux 10.1 inch 1280x800 TFT LCD Panel IPS Display G101ICE-L01 LVDS interface 40pins

Stock: In Stock
Brand: INNoLux
Model: G101ICE-L01
Weight: 0.75kg
Dimensions: 32.00cm x 22.00cm x 9.00cm
SKU: G101ICE-L01
UPC: G101ICE-L01
JAN: G101ICE-L01
ISBN: G101ICE-L01
MPN: G101ICE-L01

Products Sold: 0

Product Views: 81

0 reviews - Write a review

$999.99

Ex Tax: $999.99

Price in reward points: 28

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Manufacturer	Innolux
Model Name	G101ICE-L01
Screen Size	10.1 inch
Pixel Number	1280(RGB)×800,WXGA
Active Area(mm)	216.96 x 135.60 (H×V)
Outline(mm）	230.7 x 152.55 x 6.5 (H×V×D)
Pixel Pitch(mm)	0.1695 x 0.1695 (H×V)
Treatment	Hard Coating (3H), Anti-Glare
Luminance	500 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85(CR≥10) Left / Right/UP /Down
Response time	14/11 (Typ.)(Tr/Td) ms
Display Mode	AAS,Normally black,Transmissive
Color Depth	262K/16.7M,52% NTSC
Backlight	WLED,50K hours, with LED Driver
Net Weight	375g
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8-bit),40 pins
Voltage Supply	+3.3V
Max. Ratings	Storage Temp.: -25 ~ +70 (°C) Operating Temp.: -20 ~ +70 (°C)
Package	Innolux Original package; 28 pcs/ctn; weight : 12.02Kgs; size : 435(L)mm x 350 (W)mm x 275 (H)mm
