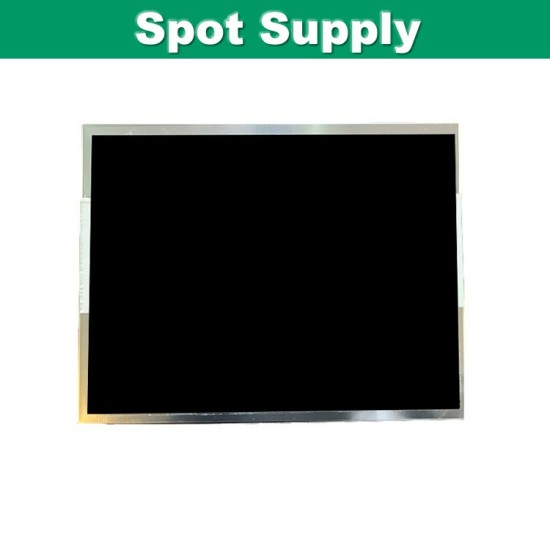

TIANMA 12.1 Inch 1024x768 TFT LCD IPS Panel P1210XGF1MA01 with High Briggtness 800 nits
- Stock: In Stock
- Brand: INNoLux
- Model: P1210XGF1MA01
- Weight: 0.75kg
- Dimensions: 32.00cm x 22.00cm x 9.00cm
- SKU: P1210XGF1MA01
- UPC: P1210XGF1MA0
- JAN: P1210XGF1MA01
- ISBN: P1210XGF1MA01
- MPN: P1210XGF1MA01
Products Sold: 0
Product Views: 60
$999.99
Ex Tax: $999.99
Price in reward points: 26
Manufacturer | TIANAM |
Model Name | P1210XGF1MA01 |
Screen Size | 12.1 Inch |
Pixel Number | 1024(RGB)×768,XGA |
Active Area(mm) | 245.76 x 184.32 (H×V) |
Outline(mm) | 260.5 x 203.0 x 9.5 (H×V×D) |
Pixel Pitch(mm) | 0.240 x 0.240 (H×V) |
Treatment | AG |
Luminance | 800 cd/m² (Typ.) |
Contrast Ratio | 1000 : 1 (Typ.) (TM) |
Viewing Angle | 88/88/88/88(CR≥10) Left / Right/UP /Down |
Response | 25/25 (Typ.)(Tr/Td) ms |
Work Mode | SFT,Normally black, Transmissive |
Color Depth | 262K/16.7M,72% NTSC |
Backlight | WLED,70K hours, with LED Driver |
Net Weight | 550g |
Touchscreen | without |
Signal Type/interface Type | LVDS (1 ch, 6/8-bit),20 pins |
Voltage Supply | 3.3V |
Max. Ratings |
Storage Temp.: -40 ~ +90 (°C) Operating Temp.: -30 ~ +80 (°C) |
Package | TIANMA Original Package |
