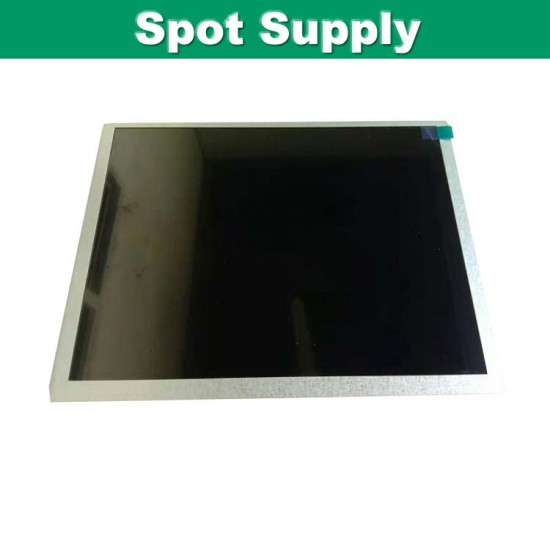

TIANMA 10.4 inch 1024x768 TFT LCD IPS Panel TM104TDGP10 With 20 pin LVDS

TIANMA 10.4 inch 1024x768 TFT LCD IPS Panel TM104TDGP10 With 20 pin LVDS
TIANMA 10.4 inch 1024x768 TFT LCD IPS Panel TM104TDGP10 With 20 pin LVDS
  • Stock: In Stock
  • Brand: INNoLux
  • Model: TM104TDGP10
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: TM104TDGP10
  • UPC: TM104TDGP10
  • JAN: TM104TDGP10
  • ISBN: TM104TDGP10
  • MPN: TM104TDGP10
Products Sold: 0
Product Views: 61
$999.99
Ex Tax: $999.99
Price in reward points: 32
Manufacturer  TIANMA
Model Name TM104TDGP10
Screen Size 10.4 inch
Pixel Number 1024(RGB)×768 ,  XGA
Active Area(mm) 210.432 x 157.824 (H×V)
Outline(mm) 230.00 x 175.80 x 5.70 (H×V×D)
pixel Pitch(mm) 0.2055 x 0.2055 (H×V)
Treatment
Anti-Glare
Luminance 450 cd/m² (Typ.)
Contrast Ratio 1200 : 1 (Typ.) (TM)
Viewing Angle 85/85/85/85(CR≥10) Left / Right/UP /Down
Response 35 (Typ.)(Tr/Td) ms
Work Mode SFT,Normally black, Transmissive
Color Depth 262K/16.7M,50% NTSC
Backlight WLED,50K hours, with LED Driver
Net Weight 430G
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6/8-bit),20 pins
Voltage Supply 3.3V
Max. Ratings Storage Temp.: -30 ~ +80 (°C)
Operating Temp.: -20 ~ +70 (°C)
Package TIANMA Original Package;
18 pcs/ctn;
weight : TBD;
size : 544(L)mm x 365(W)mm x 250(H)mm
