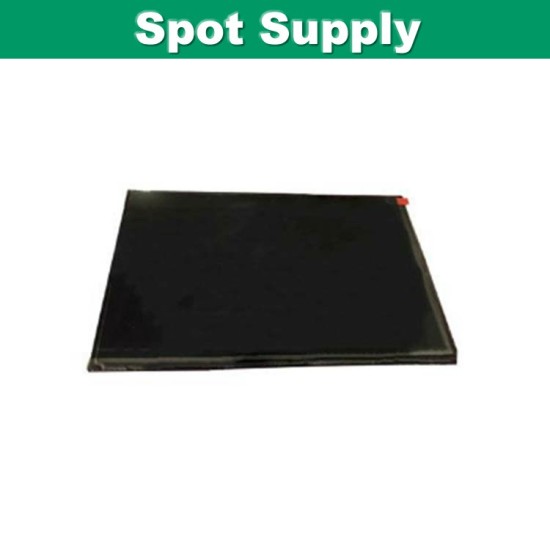

TIANMA 10.1 inch 1280x800 TFT LCD Panel IPS Display TM101JDHP01 with 40 pin lVDS, 400 nit
- Stock: In Stock
- Brand: INNoLux
- Model: TM101JDHP01
- Weight: 0.75kg
- Dimensions: 32.00cm x 22.00cm x 9.00cm
- SKU: TM101JDHP01
- UPC: TM101JDHP01
- JAN: TM101JDHP01
- ISBN: TM101JDHP01
- MPN: TM101JDHP01
Products Sold: 0
Product Views: 69
$999.99
Ex Tax: $999.99
Price in reward points: 27
Manufacturer | TIANMA |
Model Name | TM101JDHP01 |
Screen Size | 10.1 inch |
Pixel Number | 1280(RGB)×800,WXGA |
Active Area(mm) | 216.96 x135.60 (H×V) |
Outline(mm) | 229.46 x 149.10 x 2.50 (H×V×D) |
Pixel pitch(mm) | 0.1695 x 0.1695 (H×V) |
Treatment | HC |
Luminance | 400 cd/m² (Typ.) |
Contrast Ratio | 800 : 1 (Typ.) (TM) |
Viewing Angle | 85/85/85/85 (CR≥10) Le135.60ft / Right/UP /Down |
Response | 10/15 (Typ.)(Tr/Td) ms |
Work Mode | SFT,Normally black, Transmissive |
Color Depth | 16.7M,50% NTSC |
Backlight | WLED,30K hours, without driver |
Net Weight | 180g |
Touchscreen | without |
Signal Type/interface Type | LVDS (1 ch, 8-bit),40 pins |
Voltage Supply | 3.3V |
Max. Ratings |
Storage Temp.: -20 ~ +60 (°C) Operating Temp.: -10 ~ +50 (°C) |
Package | TIANMA original package |
