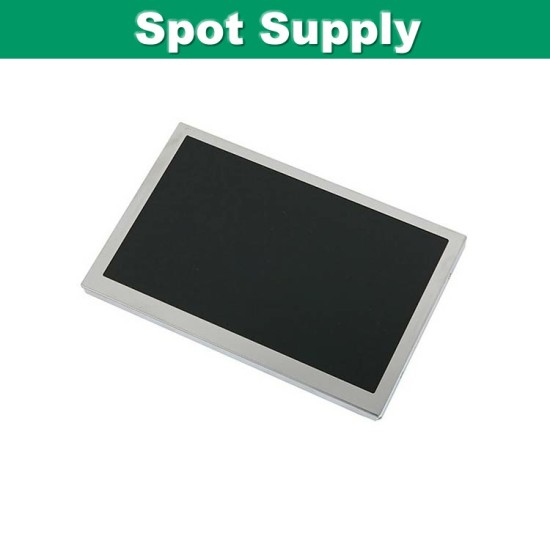

Innolux 7 Inch 800x480 WVGA TFT LCD Panel IPS Display G070ACE-LH1 High Brightness 1000nits

Innolux 7 Inch 800x480 WVGA TFT LCD Panel IPS Display G070ACE-LH1 High Brightness 1000nits
Innolux 7 Inch 800x480 WVGA TFT LCD Panel IPS Display G070ACE-LH1 High Brightness 1000nits
  • Stock: In Stock
  • Brand: INNoLux
  • Model: G070ACE-LH1
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: G070ACE-LH1
  • UPC: G070ACE-LH1
  • JAN: G070ACE-LH1
  • ISBN: G070ACE-LH1
  • MPN: G070ACE-LH1
Products Sold: 0
Product Views: 122
0 reviews - Write a review
$999.99
Ex Tax: $999.99
Price in reward points: 23
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Manufacturer  INNOLUX
Model Name G070ACE-LH1
Screen Size 7 inch
Pixel Number 800(RGB)×480,WVGA
Active Area(mm) 152.4 x 91.44 (H×V)
Outline(mm） 170 x 110 x 6 (H×V×D)
Pixel Pitch(mm) 0.1905 x 0.1905 (H×V)
Treatment
AG type, 3H hard coating
Luminance 1000 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89(CR≥10) Left / Right/UP /Down
Response time 13/12 (Typ.)(Tr/Td) ms
Display Mode AAS,Normally black,Transmissive
Color Depth 262K/16.7M,59% NTSC
Backlight WLED,50K hours , with LED Driver
Net Weight 196.0g
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6/8-bit),30 pins
Voltage Supply +3.3 V
Max. Ratings Storage Temp.: -30 ~ +85 (°C)
Operating Temp.: -30 ~ +80 (°C)
Package InnoluxOriginal package;
38 pcs/ctn;
weight : 8.3Kgs;
size : 445 (L)mm x 370 (W)mm x 275 (H)mm
