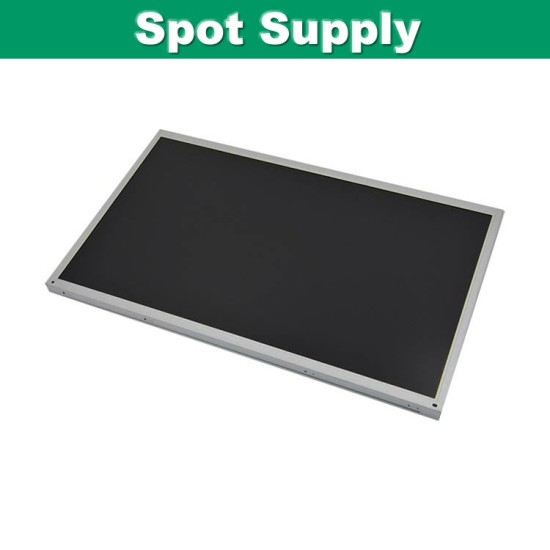

Innolux 15.6 Inch 1920x1080 FHD TFT LCD Panel IPS LCD Display G156HCE-L01 With LVDS 40pins

Innolux 15.6 Inch 1920x1080 FHD TFT LCD Panel IPS LCD Display G156HCE-L01 With LVDS 40pins
Innolux 15.6 Inch 1920x1080 FHD TFT LCD Panel IPS LCD Display G156HCE-L01 With LVDS 40pins
  • Stock: In Stock
  • Brand: INNoLux
  • Model: G156HCE-L01
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: G156HCE-L01
  • UPC: G156HCE-L01
  • JAN: G156HCE-L01
  • ISBN: G156HCE-L01
  • MPN: G156HCE-L01
Products Sold: 0
Product Views: 33
0 reviews - Write a review
$999.99
Ex Tax: $999.99
Price in reward points: 21
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Manufacturer  INNOLUX
Model Name G156HCE-L01
Screen Size 15.6 Inch
Pixel Number 1920(RGB)×1080,FHD
Active Area(mm) 344.16 x 193.59 (H×V)
Outline(mm） 363.8 x 215.9 x 9.3 (H×V×D)
Pixel Pitch(mm) 0.17925 x 0.17925 (H×V)
Treatment
AG type, 3H hard coating
Luminance 450 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (TM)
Viewing Angle 85/85/85/85(CR≥10) Left / Right/UP /Down
Response time 13/12 (Typ.)(Tr/Td) ms
Display Mode AAS,Normally black, Transmissive
Color Depth 16.7M,73% NTSC
Backlight WLED, 50K hours, with LED Driver
Net Weight 1.10Kgs
Touchscreen without
Signal Type/interface Type LVDS (2 ch, 8-bit),40 pins
Voltage Supply +3.3V
Max. Ratings Storage Temp.: -40 ~ +90 (°C)
Operating Temp.: -30 ~ +85 (°C)
Package Innolux Original package;
18 pcs/ctn;
weight : 21.5Kgs;
size : 465 (L)mm x 362 (W)mm x 314 (H)mm
