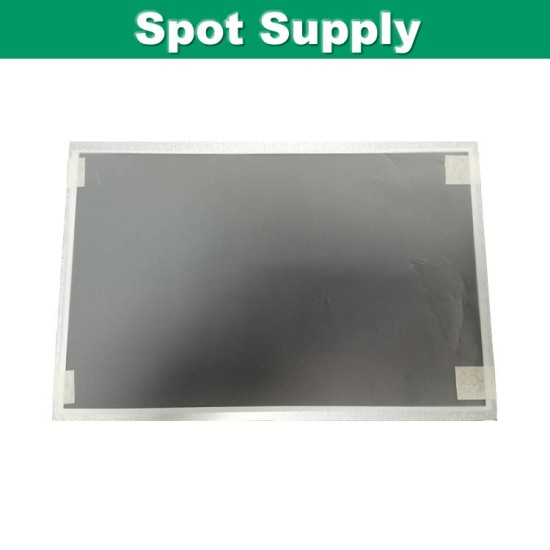

Innolux 12.1 Inch 1280x800 WXGA TFT LCD Panel IPS Display G121ICE-L01 with LVDS interfacce

Innolux 12.1 Inch 1280x800 WXGA TFT LCD Panel IPS Display G121ICE-L01 with LVDS interfacce
Innolux 12.1 Inch 1280x800 WXGA TFT LCD Panel IPS Display G121ICE-L01 with LVDS interfacce
  • Stock: In Stock
  • Brand: INNoLux
  • Model: G121ICE-L01
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: G121ICE-L01
  • UPC: G121ICE-L01
  • JAN: G121ICE-L01
  • ISBN: G121ICE-L01
  • MPN: G121ICE-L01
Products Sold: 0
Product Views: 31
0 reviews - Write a review
$999.99
Ex Tax: $999.99
Price in reward points: 20
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Manufacturer  Innolux
Model Name G121ICE-L01
Screen Size 12.1 inch
Pixel Number 1280(RGB)×800,WXGA
Active Area(mm) 261.12 x 163.2 (H×V)
Outline(mm） 278 x 184 x 10 (H×V×D)
Pixel Pitch(mm) 0.204 x 0.204 (H×V)
Treatment
AG type, 3H hard coating
Luminance 600 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 85/85/85/85(CR≥10) Left / Right/UP /Down
Response time 12/8 (Typ.)(Tr/Td) ms
Display Mode AAS,Normally black, Transmissive
Color Depth 262K/16.7M,72% NTSC
Backlight WLED, 50K hours, with LED Driver
Net Weight 490g
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6/8-bit),30 pins
Voltage Supply +3.3V
Max. Ratings Storage Temp.: -30 ~ +85 (°C)
Operating Temp.: -30 ~ +80 (°C)
Package Innolux Original package;
20 pcs/ctn;
weight : 17.0Kgs;
size : 465(L)mm x 362(W)mm x 314(H)mm
