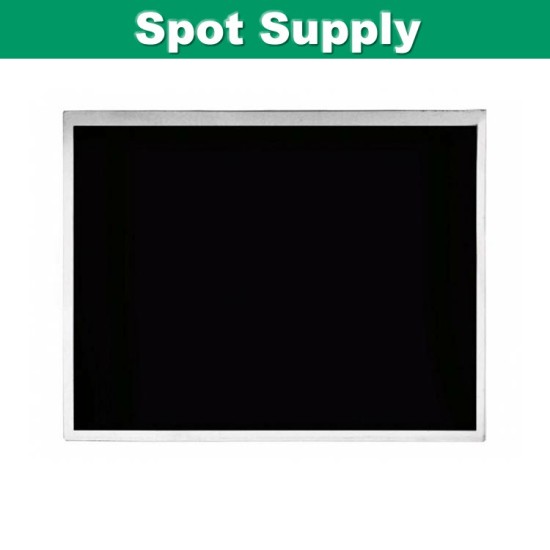

Innolux 12.1 Inch 1024x768 XGA LCD Panel Screen For Industry G121X1-L03 600nits and 20 pins LVDS

Innolux 12.1 Inch 1024x768 XGA LCD Panel Screen For Industry G121X1-L03 600nits and 20 pins LVDS
Innolux 12.1 Inch 1024x768 XGA LCD Panel Screen For Industry G121X1-L03 600nits and 20 pins LVDS
  • Stock: In Stock
  • Brand: INNoLux
  • Model: G121X1-L03
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: G121X1-L03
  • UPC: G121X1-L03
  • JAN: G121X1-L03
  • ISBN: G121X1-L03
  • MPN: G121X1-L03
Products Sold: 0
Product Views: 33
0 reviews - Write a review
$999.99
Ex Tax: $999.99
Price in reward points: 30
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Manufacturer  Innolux
Model Name G121X1-L03
Screen Size 12.1 Inch
Pixel Number 1024(RGB)×768,XGA
Active Area(mm) 245.76 × 184.32 (H×V)
Outline(mm） 260.5 × 204 × 8.4 (H×V×D)
Pixel Pitch(mm) 0.24 × 0.24 (H×V)
Treatment Hard coating 3H,Glare
Luminance 600 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 80/80/70/70 (CR≥10) Left / Right/UP /Down
Response time 5/11 (Typ.)(Tr/Td) ms
Display Mode TN,Normally white,Transmissive
Color Depth 262K/16.2M,63% NTSC
Backlight WLED,50K hours , with LED Driver
Net Weight 540g
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6/8-bit),20 pins
Voltage Supply +3.3 V
Max. Ratings Storage Temp.: -40 ~ +85 (°C)
Operating Temp.: -30 ~ +80 (°C)
Package Innolux Original package;
16 pcs/ctn;
weight : 15.0Kgs;
size : 465(L) x 362(W) x 314(H)mm
