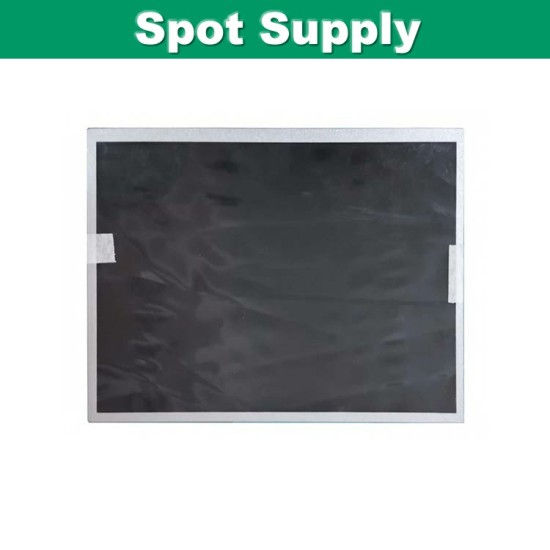

Innolux 12.1 Inch 1024x768 TFT LCD Panel IPS Display G121XCE-L01 600nit and LVDS 20 pins
- Stock: In Stock
- Brand: INNoLux
- Model: G121XCE-L01
- Weight: 0.75kg
- Dimensions: 32.00cm x 22.00cm x 9.00cm
- SKU: G121XCE-L01
- UPC: G121XCE-L01
- JAN: G121XCE-L01
- ISBN: G121XCE-L01
- MPN: G121XCE-L01
Products Sold: 0
Product Views: 34
$999.99
Ex Tax: $999.99
Price in reward points: 34
Manufacturer | Innolux |
Model Name | G121XCE-L01 |
Screen Size | 12.1 inch |
Pixel Number | 1024(RGB)×768,XGA |
Active Area(mm) | 245.76 x 184.32 (HxV) |
Outline(mm) | 260.5(W) x 204.0(V) x 8.4(D) |
Bezel Area(mm) | 249.0 x 187.5 (HxV) |
Treatment | Hard coating (3H),Anti-Glare |
Luminance | 600 cd/m² (Typ.) |
Contrast Ratio | 1000 : 1 (Typ.) (TM) |
Viewing Angle | 89/89/89/89(CR≥10) Left / Right / Up / Down |
Response | 13/12 (Typ.)(Tr+Td) ms |
Work Mode | AAS,Normally black,Transmissive |
Color Depth | 262K/16.2M,72% NTSC |
Backlight | WLED,50K hours,With LED Driver |
Net Weight | 510g |
operating frequency | 60Hz |
Touchscreen | Without, RTP+CTP for options |
Signal Type/interface Type | LVDS (1 ch, 6/8-bit),20 pins |
Voltage Supply | +3.3 V (Typ.) |
Temperature |
Storage Temp.: -40 ~ +90 (°C) Operating Temp.: -30 ~ +85 (°C) |
Package |
Innolux original package; 18 pcs/ctn; weight : 10.9 Kgs; size : 465 (L) mm x 362 (W) mm x 314 (H) mm |
Tags:
G121XCE-L01
