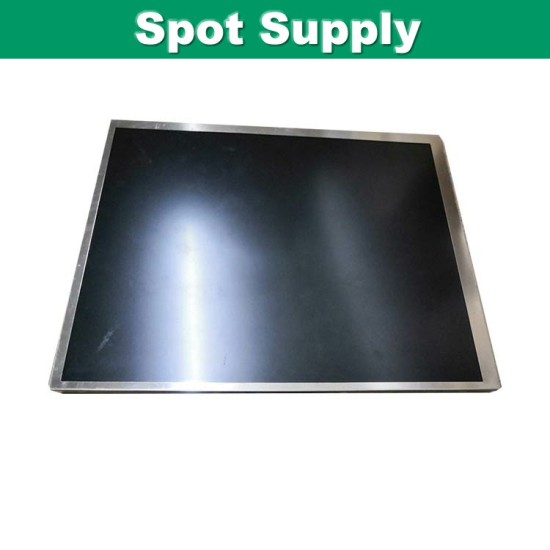

Innolux 10.4 Inch 960x1280 TFT LCD Panel IPS Display G104ACJ-L01 High Brightness 900nits

Innolux 10.4 Inch 960x1280 TFT LCD Panel IPS Display G104ACJ-L01 High Brightness 900nits
Innolux 10.4 Inch 960x1280 TFT LCD Panel IPS Display G104ACJ-L01 High Brightness 900nits
  • Stock: In Stock
  • Brand: INNoLux
  • Model: G104ACJ-L01
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: G104ACJ-L01
  • UPC: G104ACJ-L01
  • JAN: G104ACJ-L01
  • ISBN: G104ACJ-L01
  • MPN: G104ACJ-L01
Products Sold: 0
Product Views: 29
$999.99
Ex Tax: $999.99
Price in reward points: 35
Manufacturer  INNOLUX
Model Name G104ACJ-L01
Screen Size 10.4 inch
Pixel Number 960(RGB)×1280,Quad-VGA
Active Area(mm) 158.4 x 211.2 (H×V)
Outline(mm) 173.4 x 228.7 x 13.77 (H×V×D)
Pixel Pitch(mm) 0.165 x 0.165 (H×V)
Treatment
Hard coating (3H), Anti-Glare
Luminance 900 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 85/85/85/85(CR≥10) Left / Right/UP /Down
Response time 13/12 (Typ.)(Tr/Td) ms
Display Mode AAS,Normally BLACK, Transmissive
Color Depth 262K/16.7M,50% NTSC
Backlight WLED, 50K hours, without Driver
Net Weight 470g
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 8-bit),50 pins
Voltage Supply +3.3V
Max. Ratings Storage Temp.: -40 ~ +90 (°C)
Operating Temp.: -40 ~ +85 (°C)
Package Innolux Original package;
18 pcs/ctn;
size : 490(L)mm x 350(W)mm x 320(H)mm;
weight : 10.1Kgs
