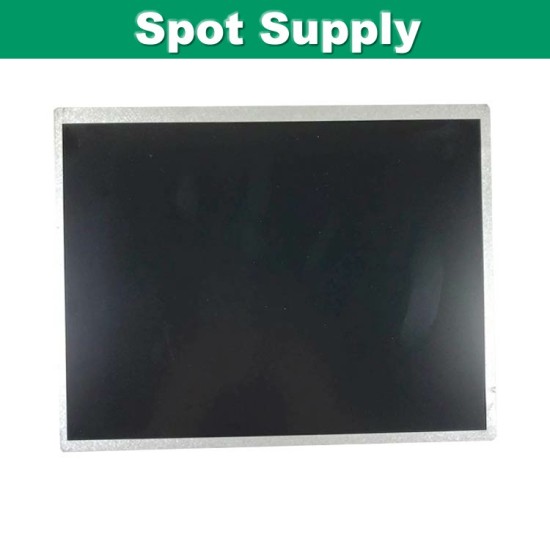

Innolux 10.4 Inch 640x480 VGA LCD Panel TFT LCD IPS Display G104V1-T03 500nits and CMOS 31 pins

Innolux 10.4 Inch 640x480 VGA LCD Panel TFT LCD IPS Display G104V1-T03 500nits and CMOS 31 pins
Innolux 10.4 Inch 640x480 VGA LCD Panel TFT LCD IPS Display G104V1-T03 500nits and CMOS 31 pins
  • Stock: In Stock
  • Brand: INNoLux
  • Model: G104V1-T03
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: G104V1-T03
  • UPC: G104V1-T03
  • JAN: G104V1-T03
  • ISBN: G104V1-T03
  • MPN: G104V1-T03
Products Sold: 0
Product Views: 28
0 reviews - Write a review
$999.99
Ex Tax: $999.99
Price in reward points: 26
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Manufacturer  Innolux
Model Name G104V1-T03
Screen Size 10.4 Inch
Pixel Number 640(RGB)×480,VGA
Active Area(mm) 211.2 × 158.4 (H×V)
Outline(mm） 225.5 × 176.3 × 7.8 (H×V×D)
Pixel Pitch(mm) 215.4 × 161.8 (H×V)
Treatment Hard coating 3H,Anti-glare (Haze 25%)
Luminance 500 cd/m² (Typ.)
Contrast Ratio 1500 : 1 (Typ.) (TM)
Viewing Angle 88/88/88/88 (CR≥10) Left / Right/UP /Down
Response time 17/9 (Typ.)(Tr/Td) ms
Display Mode Super MVA , Normally black , Transmissive
Color Depth 262K,55% NTSC
Backlight WLED,50K hours , with LED Driver
Net Weight 445g
Touchscreen without
Signal Type/interface Type CMOS/TTL (1 ch, 6-bit),31 pins
Voltage Supply +3.3 V
Max. Ratings Storage Temp.: -30 ~ +80 (°C)
Operating Temp.: -30 ~ +80 (°C)
Package Innolux Original package;
16 pcs/ctn;
weight : 15.0Kgs;
size : 465(L) x 362(W) x 314(H)mm
