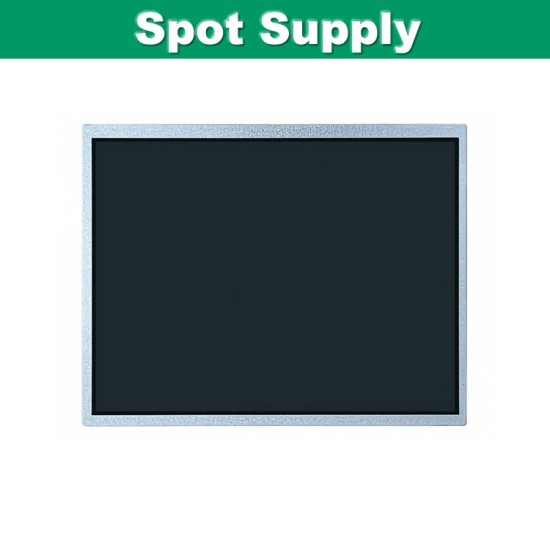

Name: Innolux 10.4 Inch 1024x768 XGA LCD Panel TFT LCD IPS Display G104X1-L04 500nits and LVDS 30 pins
Brand: INNoLux
SKU: G104X1-L04
Price: 999.99 USD
Availability: InStock

Innolux 10.4 Inch 1024x768 XGA LCD Panel TFT LCD IPS Display G104X1-L04 500nits and LVDS 30 pins

Stock: In Stock
Brand: INNoLux
Model: G104X1-L04
Weight: 0.75kg
Dimensions: 32.00cm x 22.00cm x 9.00cm
SKU: G104X1-L04
UPC: G104X1-L04
JAN: G104X1-L04
ISBN: G104X1-L04
MPN: G104X1-L04

Products Sold: 0

Product Views: 42

0 reviews - Write a review

$999.99

Ex Tax: $999.99

Price in reward points: 22

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Manufacturer	INNOLUX
Model Name	G104X1-L04
Screen Size	10.4 Inch
Pixel Number	1024(RGB)×768,XGA
Active Area(mm)	210.4 × 157.8 (H×V)
Outline(mm）	225.5 × 176.8 × 8.7 (H×V×D)
Pixel Pitch(mm)	0.0685 × 0.2055 (H×V)
Treatment	Anti Glare
Luminance	500 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	88/88/88/88 (CR≥10) Left / Right/UP /Down
Response time	14/11 (Typ.)(Tr/Td) ms
Display Mode	Super MVA,Normally black , Transmissive
Color Depth	262K/16.7M,55% NTSC
Backlight	WLED,50K hours , with LED Driver
Net Weight	480g
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8-bit),30 pins
Voltage Supply	+3.3 V
Max. Ratings	Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -30 ~ +80 (°C)
Package	Innolux original package; 18 pcs/ctn; weight : 11.23Kgs; size : 465(L) x 362(W) x 314(H)mm
