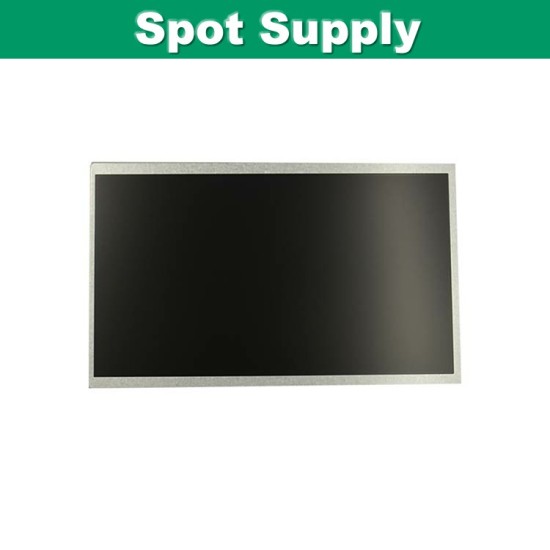

Name: Innolux 10.1 inch 1280x800 WXGA TFT LCD Panel IPS Display G101ICE-LM1 350nit and LVDS 30 pins
Brand: INNoLux
SKU: G101ICE-LM1
Price: 999.99 USD
Availability: InStock

Innolux 10.1 inch 1280x800 WXGA TFT LCD Panel IPS Display G101ICE-LM1 350nit and LVDS 30 pins

Stock: In Stock
Brand: INNoLux
Model: G101ICE-LM1
Weight: 0.75kg
Dimensions: 32.00cm x 22.00cm x 9.00cm
SKU: G101ICE-LM1
UPC: G101ICE-LM1
JAN: G101ICE-LM1
ISBN: G101ICE-LM1
MPN: G101ICE-LM1

Products Sold: 0

Product Views: 9

0 reviews - Write a review

$999.99

Ex Tax: $999.99

Price in reward points: 35

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Manufacturer	INNOLUX
Model Name	G101ICE-LM1
Screen Size	10.1 inch
Pixel Number	1280(RGB)×800,WXGA
Active Area(mm)	216.96 x 135.60 (H×V)
Outline(mm）	227.42 x 147.69 x 2.55 (H×V×D)
Pixel Pitch(mm)	0.1695 x 0.1695 (H×V)
Treatment	Hard coating (3H),Anti-Glare
Luminance	350 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	88/88/88/88(CR≥10) Left / Right/UP /Down
Response time	13/12 (Typ.)(Tr/Td) ms
Display Mode	AAS,Normally black,Transmissive
Color Depth	262K/16.7M,52% NTSC
Backlight	WLED,50K hours , with LED Driver
Net Weight	190.0g
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8-bit),30 pins
Voltage Supply	+5.0 V
Max. Ratings	Storage Temp.: -20 ~ +70 (°C) Operating Temp.: -10 ~ +60 (°C)
Package	Innolux Original package; 28 pcs/ctn; weight : 12.0Kgs; size : 435(L)mm x 350(W)mm x 275(H)mm
