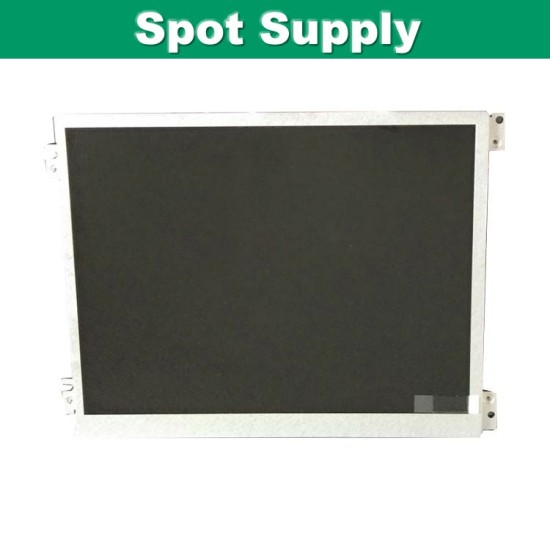

CHIEMEI Innolux 10.4 Inch 800x600 SVGA TFT LCD Panel LVDS Display G104S1-L01 400nits

CHIEMEI Innolux 10.4 Inch 800x600 SVGA TFT LCD Panel LVDS Display G104S1-L01 400nits
CHIEMEI Innolux 10.4 Inch 800x600 SVGA TFT LCD Panel LVDS Display G104S1-L01 400nits
  • Stock: In Stock
  • Brand: INNoLux
  • Model: G104S1-L01
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: G104S1-L01
  • UPC: G104S1-L01
  • JAN: G104S1-L01
  • ISBN: G104S1-L01
  • MPN: G104S1-L01
Products Sold: 0
Product Views: 10
0 reviews - Write a review
$999.99
Ex Tax: $999.99
Price in reward points: 32
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Manufacturer  Innolux
Model Name G104S1-L01
Screen Size 10.4 Inch
Pixel Number 800(RGB)×600,SVGA
Active Area(mm) 211.2 x 158.4 (H×V)
Outline(mm） 243.0 x 184.0 x 7.0 (H×V×D)
Pixel Pitch(mm) 214.8 x 162.7 (H×V)
Treatment
Hard coating (3H), AG
Luminance 400 cd/m² (Typ.)
Contrast Ratio 700 : 1 (Typ.) (TM)
Viewing Angle 80/80/70/70(CR≥10) Left / Right/UP /Down
Response time 5/11 (Typ.)(Tr/Td) ms
Display Mode TN,Normally white,Transmissive
Color Depth 262K/16.7M,53% NTSC
Backlight WLED,30K hours , with LED Driver
Net Weight 355g
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6/8-bit),20 pins
Voltage Supply +3.3 V
Max. Ratings Storage Temp.: -40 ~ +80 (°C)
Operating Temp.: -20 ~ +70 (°C)
Package Innolux Original package;
16 pcs/ctn;
weight : 11.7Kgs;
size : 570(L)mm x 450(W)mm x 320(H)mm
