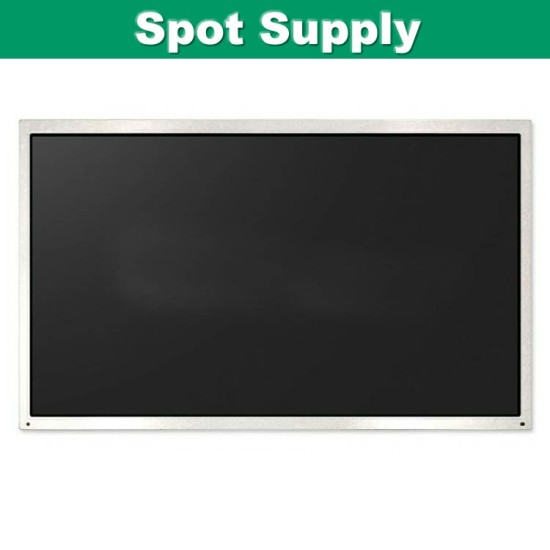

Tianma 12.1 Inch 800x600 SVGA TFT LCD Panel IPS Display P1210SVF1MB00 500nits

Tianma 12.1 Inch 800x600 SVGA TFT LCD Panel IPS Display P1210SVF1MB00 500nits
Tianma 12.1 Inch 800x600 SVGA TFT LCD Panel IPS Display P1210SVF1MB00 500nits
  • Stock: In Stock
  • Model: P1210SVF1MB00
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: P1210SVF1MB00
  • UPC: P1210SVF1MB0
  • JAN: P1210SVF1MB00
  • ISBN: P1210SVF1MB00
  • MPN: P1210SVF1MB00
Products Sold: 0
Product Views: 53
$999.99
Ex Tax: $999.99
Price in reward points: 29
Manufacturer  TIANMA
Model Name P1210SVF1MB00
Screen Size 12.1 inch
Pixel Number 800(RGB)×600,SVGA
Active Area(mm) 246.0 x 1844.5 (H×V)
Outline(mm) 279.0 x 209.0 x 9 (H×V×D)
Pixel Pitch(mm) 0.3075 x 0.3075 (H×V)
Treatment
Anti Glare
Luminance 500 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 88/88/88/88 (CR≥10) Left / Right/UP /Down
Response time 25 (Typ.)(Tr/Td) ms
Display Mode SFT,Normally black,Transmissive
Color Depth 262K/16.7M,72% NTSC
Backlight WLED,50K hours , with LED Driver
Net Weight 492g
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6/8-bit),20 pins
Voltage Supply +3.3 V
Max. Ratings Storage Temp.: -30 ~ +80 (°C)
Operating Temp.: -20 ~ +70 (°C)
Package TIIANMA Original package;
weight : 14.48Kgs;
size : 577(L) x 421(W) x 326(H) mm
