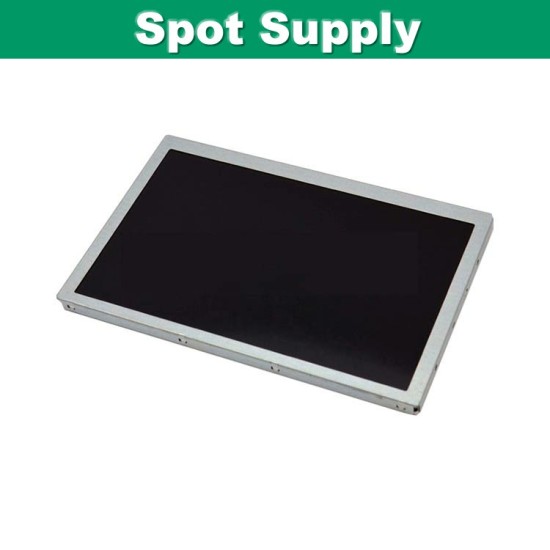

TIANMA 7 inch 800x480 TFT IPS Panel P0700WVF1MA10 with 1000 nit high brightness and LVDS

TIANMA 7 inch 800x480 TFT IPS Panel P0700WVF1MA10 with 1000 nit high brightness and LVDS
TIANMA 7 inch 800x480 TFT IPS Panel P0700WVF1MA10 with 1000 nit high brightness and LVDS
  • Stock: In Stock
  • Model: P0700WVF1MA10
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: P0700WVF1MA10
  • UPC: P0700WVF1MA1
  • JAN: P0700WVF1MA10
  • ISBN: P0700WVF1MA10
  • MPN: P0700WVF1MA10
Products Sold: 0
Product Views: 58
$999.99
Ex Tax: $999.99
Price in reward points: 21
Manufacturer  TIANMA
Model Name P0700WVF1MA10
Screen Size 7 inch
Pixel Number 800(RGB)×480,WVGA
Active Area(mm) 154.40 × 91.44 (H×V)
Outline(mm) 169.80 x 109.70 x 9.90 (H×V×D)
Pixel pitch(mm) 0.1905 x 0.1905 (H×V)
Treatment (Haze 25%),Hard coating (3H)
Luminance 1000 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (CR≥10) Left / Right/UP /Down
Response 25 (Typ.)(Tr/Td) ms
Work Mode SFT,Normally black, Transmissive
Color Depth 262K/16.7M,70% NTSC
Backlight WLED,70K hours, with LED Driver
Net Weight TBD
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6/8-bit),20 pins
Voltage Supply 3.3V
Max. Ratings Storage Temp.: -40 ~ +9(°C)
Operating Temp.: -30 ~ +8(°C)
Package TIANMA original package
