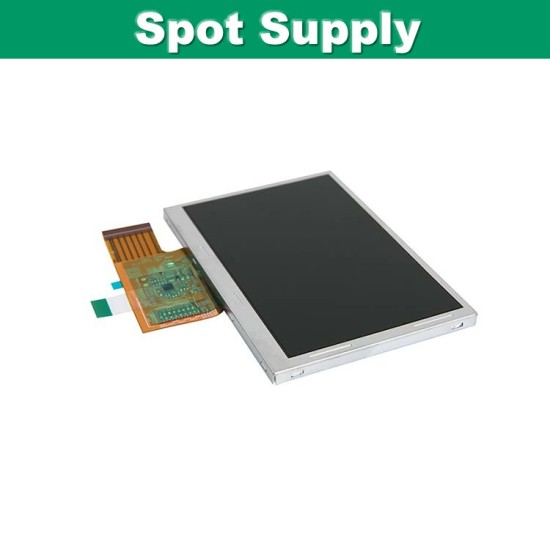

TIANMA 5 inch 800x480 TFT LCD Screen A0500WVF2MAAA with 1000 nits high brightness
- Stock: In Stock
- Model: A0500WVF2MAAA
- Weight: 0.75kg
- Dimensions: 32.00cm x 22.00cm x 9.00cm
- SKU: A0500WVF2MAAA
- UPC: A0500WVF2MAA
- JAN: A0500WVF2MAAA
- ISBN: A0500WVF2MAAA
- MPN: A0500WVF2MAAA
Products Sold: 0
Product Views: 58
$999.99
Ex Tax: $999.99
Price in reward points: 33
Manufacturer | TIANMA |
Model Name | A0500WVF2MAAA |
Screen Size | 5 inch |
Pixel Number | 800(RGB)x480, WVGA |
Active Area(mm) | 108.60 x 65.16 (H×V) |
Outline(mm) | 121.3 x 78.8 x 5.8 (H×V×D) |
Pixel pitch(mm) | 0.13575 x 0.13575 (H×V) |
Treatment | HC |
Luminance | 1000 cd/m² (Typ.) |
Contrast Ratio | 1000 : 1 (Typ.) (TM) |
Viewing Angle | 88/88/88/88 (Typ.) |
Response | 30 (Typ.)(Tr/Td) ms |
Work Mode | SFT, Normally black, Transmissive |
Color Depth | 16.7M,50% NTSC |
Backlight | WLED, 50K hours, without driver |
Net Weight | TBD |
Touchscreen | without |
Signal Type/interface Type | Parallel RGB (1 ch, 8-bit) + SPI,50 pins,FPC |
Voltage Supply | 3.3V |
Max. Ratings |
Storage Temp.: -40 ~ +90 (°C) Operating Temp.: -30 ~ +85 (°C) |
Package |
TIANMA Original package; TBD |
Tags:
A0500WVF2MAAA
