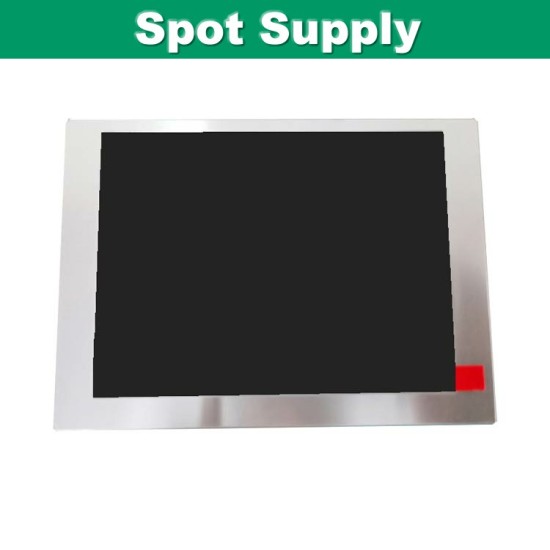

TIANMA 5.7 inch 320x240 TFT LCD Screen TM057KDH01-10 qith 400 nits and RGB 33 pin
- Stock: In Stock
- Model: TM057KDH01-10
- Weight: 0.75kg
- Dimensions: 32.00cm x 22.00cm x 9.00cm
- SKU: TM057KDH01-10
- UPC: TM057KDH01-1
- JAN: TM057KDH01-10
- ISBN: TM057KDH01-10
- MPN: TM057KDH01-10
Products Sold: 0
Product Views: 69
$999.99
Ex Tax: $999.99
Price in reward points: 20
Manufacturer | TIANMA |
Model Name | TM057KDH01-10 |
Screen Size | 5.7 inch |
Pixel Number | 320(RGB)×240,QVGA |
Active Area(mm) | 115.2 x 86.4 (H×V) |
Outline(mm) | 144.0 x 104.6 x 12.3 (H×V×D) |
Pixel pitch(mm) | 0.360 x 0.360 (H×V) |
Treatment | Anti-Glare |
Luminance | 400 cd/m² (Typ.) |
Contrast Ratio | 500 : 1 (Typ.) (TM) |
Viewing Angle | 70/70/60/70(CR≥10) Left / Right/UP /Down |
Response | 20 (Typ.)(Tr/Td) ms |
Work Mode | TN, Normally white, Transmissive |
Color Depth | 262K , 52% NTSC |
Backlight | WLED, 50K hours, without driver |
Net Weight | 157.0g |
Touchscreen | without |
Signal Type/interface Type | Parallel RGB (1 ch, 6-bit) ,33 pins |
Voltage Supply | 3.3V |
Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
Package |
TIANMA Original Package; 40 pcs/ctn; weight : 9.276Kgs; size : 530(L)mm x 350(W)mm x 250(H)mm |
