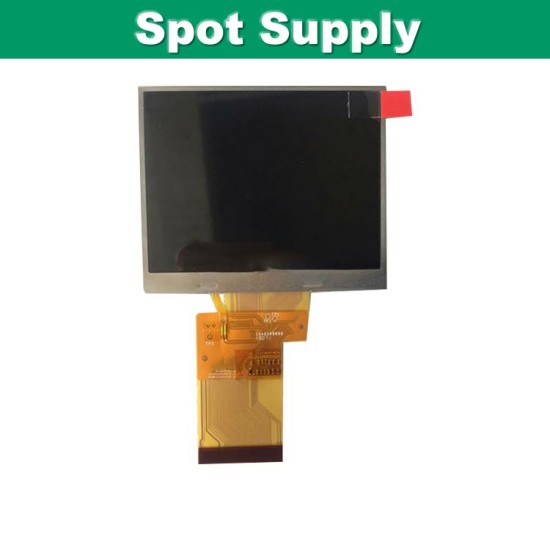

TIANMA 3.5 inch 320x240 TFT LCD Module TM035KDH03-79 with FPC 54 pin

TIANMA 3.5 inch 320x240 TFT LCD Module TM035KDH03-79 with FPC 54 pin
TIANMA 3.5 inch 320x240 TFT LCD Module TM035KDH03-79 with FPC 54 pin
  • Stock: In Stock
  • Model: TM035KDH03-79
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: TM035KDH03-79
  • UPC: TM035KDH03-7
  • JAN: TM035KDH03-79
  • ISBN: TM035KDH03-79
  • MPN: TM035KDH03-79
Products Sold: 0
Product Views: 63
0 reviews - Write a review
$999.99
Ex Tax: $999.99
Price in reward points: 21
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Manufacturer  TIANMA
Model Name TM035KDH03-79
Screen Size 3.5 inch
Pixel Number 320(RGB)×240,QVGA
Active Area(mm) 70.08 x 52.58 (H×V)
Outline(mm） 76.9 x 63.9 x 3.15 (H×V×D)
Pixel pitch(mm) 0.219 x 0.219 (H×V)
Treatment Anti--Glare
Luminance 300 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (TM)
Viewing Angle 70/70/60/70(CR≥10) Left / Right/UP /Down
Response 20 (Typ.)(Tr/Td) ms
Work Mode TN, Normally white, Transmissive
Color Depth 16.7M,50% NTSC
Backlight WLED, 20K hours, without LED Driver
Net Weight 30.0g
Touchscreen without
Signal Type/interface Type Digital RGB (8/24-bit) + SPI, CCIR601/656,FPC, 54 pins
Voltage Supply 3.3V
Max. Ratings Storage Temp.: -30 ~ +80 (°C)
Operating Temp.: -20 ~ +70 (°C)
Package TIANMA original package;
252 pcs/ctn;
weight : 13.24Kgs;
size : 544(L)mm x 365(W)mm x 250(H)mm.
