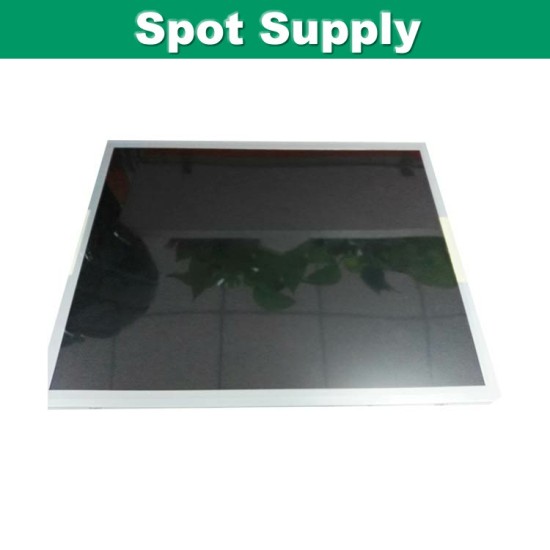

TIANMA 15 inch 1024x768 TFT LCD Panel TM150TDSG70 with 300 nits and 20 pins LVDS
- Stock: In Stock
- Model: TM150TDSG70
- Weight: 0.75kg
- Dimensions: 32.00cm x 22.00cm x 9.00cm
- SKU: TM150TDSG70
- UPC: TM150TDSG70
- JAN: TM150TDSG70
- ISBN: TM150TDSG70
- MPN: TM150TDSG70
Products Sold: 0
Product Views: 43
$999.99
Ex Tax: $999.99
Price in reward points: 21
Manufacturer | TIANMA |
Model Name | TM150TDSG70 |
Screen Size | 15 inch |
Pixel Number | 1024(RGB)×768 , XGA |
Active Area(mm) |
304.128(W) x 228.096 (V)
|
Outline(mm) |
326.5(H)×253.5 (V) ×11.8 (D)
|
Pixel pitch(mm)
|
0.297(H) × 0.297(V)
|
Treatment |
Anti Glare
|
Luminance | 300 cd/m² (Typ.) |
Contrast Ratio | 600 : 1 (Typ.) (TM) |
Viewing Angle | 80/80/80/80 (Typ.) |
Response | 8 (Typ.)(Tr/Td) ms |
Work Mode | TN,Normally white, Transmissive |
Color Depth | 262K/16.7M,60% NTSC |
Backlight | WLED, 30K hours,with LED Driver |
Net Weight | 1.00Kgs |
Touchscreen | without |
Signal Type/interface Type | LVDS (1 ch, 6/8-bit),20 pins |
Voltage Supply | 3.3V |
Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
Package |
TIANMA Original Package; 14 pcs/box; weight : 14.6Kgs; size : 378(L)x 368(W)x 315.5(H) |
Tags:
TM150TDSG70
