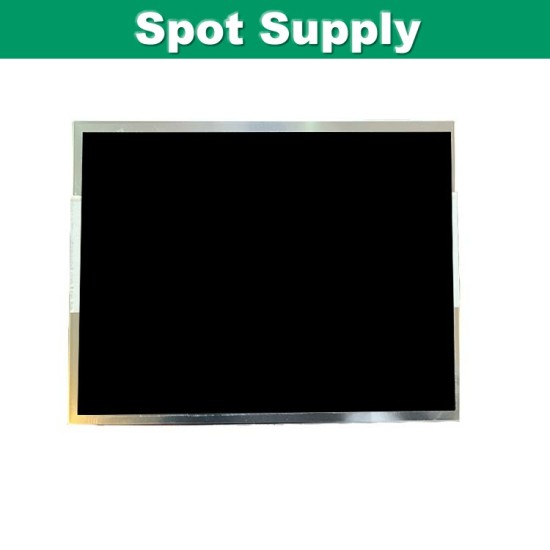

TIANMA 12.1 inch 1024x768 IPS TFT LCD Panel P1210XGF1MA00 with 1300 nits and LVDS

TIANMA 12.1 inch 1024x768 IPS TFT LCD Panel P1210XGF1MA00 with 1300 nits and LVDS
TIANMA 12.1 inch 1024x768 IPS TFT LCD Panel P1210XGF1MA00 with 1300 nits and LVDS
  • Stock: In Stock
  • Model: P1210XGF1MA00
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: P1210XGF1MA00
  • UPC: P1210XGF1MA0
  • JAN: P1210XGF1MA00
  • ISBN: P1210XGF1MA00
  • MPN: P1210XGF1MA00
Products Sold: 0
Product Views: 37
$999.99
Ex Tax: $999.99
Price in reward points: 28
Manufacturer  TIANMA
Model Name P1210XGF1MA00
Screen Size 12.1 inch
Pixel Number 1024(RGB)×768 ,  XGA
Active Area(mm)
245.76 x 184.32 (H×V)
Outline(mm)
260.5 x 203 x 9.5 (H×V×D)
Pixel Pitch(mm)
0.240 (H) x 0.240 (V)
Treatment AG
Luminance 1300 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 88/88/88/88 (Typ.)
Response 25 (Typ.)(Tr/Td) ms
Work Mode SFT,Normally black, Transmissive
Color Depth 262K/16.7M,72% NTSC
Backlight WLED, 100K hours,without driver
Net Weight 550g
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6/8-bit),20 pins
Voltage Supply 3.3V
Max. Ratings Storage Temp.: -40 ~ +90 (°C)
Operating Temp.: -30 ~ +8(°C)
Package TIANMA Original Package
