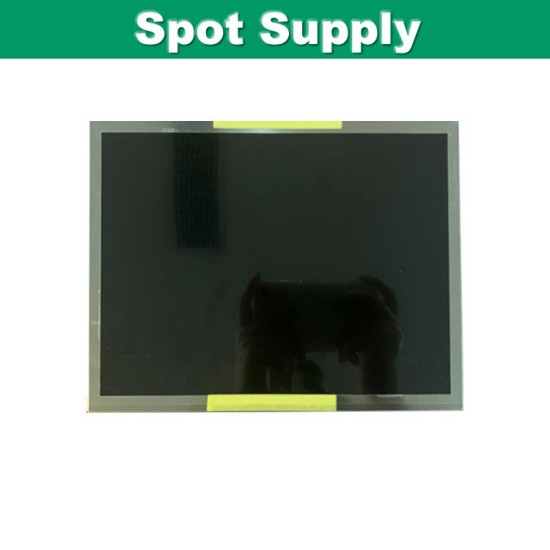

TIANMA 11.6 inch 1920x1080 IPS TFT LCD Panel P1160FHF1MA00 with 1600 nits and LVDS

TIANMA 11.6 inch 1920x1080 IPS TFT LCD Panel P1160FHF1MA00 with 1600 nits and LVDS
TIANMA 11.6 inch 1920x1080 IPS TFT LCD Panel P1160FHF1MA00 with 1600 nits and LVDS
  • Stock: In Stock
  • Model: P1160FHF1MA00
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: P1160FHF1MA00
  • UPC: P1160FHF1MA0
  • JAN: P1160FHF1MA00
  • ISBN: P1160FHF1MA00
  • MPN: P1160FHF1MA00
Products Sold: 0
Product Views: 58
$999.99
Ex Tax: $999.99
Price in reward points: 20
Manufacturer  TIANMA
Model Name P1160FHF1MA00
Screen Size 11.6 inch
Pixel Number 1920(RGB)×1080 ,FHD
Active Area(mm) 256.32 x 144.18 (H×V)
Outline(mm) 273.50 x 166.50 x 7.80 (H×V×D)
Pixel Pitch(mm)
0.1335 x 0.1335 (H×V)
Treatment
HC
Luminance 1600 cd/m² (Typ.)
Contrast Ratio 900 : 1 (Typ.) (TM)
Viewing Angle 88/88/88/88 (Typ.)
Response 25 (Typ.)(Tr/Td) ms
Work Mode SFT,Normally black,Transmissive
Color Depth 262K/16.7M,70% NTSC
Backlight WLED, 30K hours,without driver
Net Weight 525g
Touchscreen without
Signal Type/interface Type LVDS (2 ch, 6/8-bit),30 pins
Voltage Supply 3.3V
Max. Ratings Storage Temp.: -30 ~ +85 (°C)
Operating Temp.: -20 ~ +80 (°C)
Package TIANMA Original Package;
14 pcs/ctn;
weight : 6.09Kgs;
size : 530(L)mm x 430(W)mm x 274(H)mm
