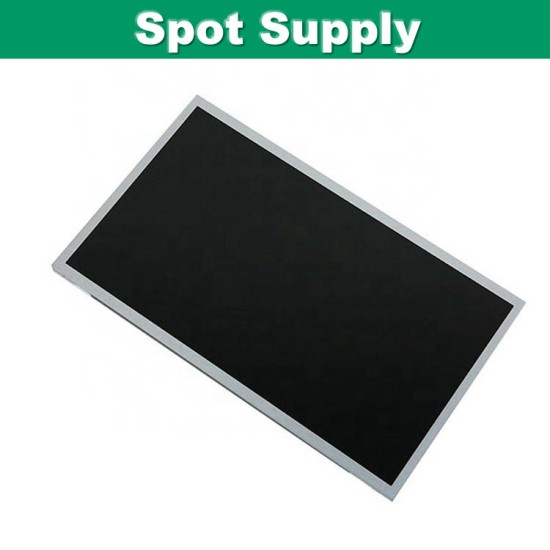

TIANMA 11.6 inch 1920x1080 FHD LCD IPS Panel TFT High Brightness Display 1000 nits P1160FHF1MA01
- Stock: In Stock
- Model: P1160FHF1MA01
- Weight: 0.75kg
- Dimensions: 32.00cm x 22.00cm x 9.00cm
- SKU: P1160FHF1MA01
- UPC: P1160FHF1MA0
- JAN: P1160FHF1MA01
- ISBN: P1160FHF1MA01
- MPN: P1160FHF1MA01
Products Sold: 0
Product Views: 74
$999.99
Ex Tax: $999.99
Price in reward points: 21
Manufacturer | TIANMA |
Model Name | P1160FHF1MA01 |
Screen Size | 11.6 inch |
Pixel Number | 1920(RGB)×1080,FHD |
Active Area(mm) | 256.32 × 144.18 (H×V) |
Outline(mm) | 273.50 × 166.50 × 7.80 (H×V×D) |
Pixel Pitch(mm) | 0.1335 × 0.1335 (H×V) |
Treatment | HC |
Luminance | 1000 cd/m² (Typ.) |
Contrast Ratio | 900 : 1 (Typ.) (TM) |
Viewing Angle | 88/88/88/88 (CR≥10) Left / Right/UP /Down |
Response time | 35 (Typ.)(Tr/Td) ms |
Display Mode | SFT,Normally black,Transmissive |
Color Depth | 262K/16.7M,72% NTSC |
Backlight | WLED,50K hours,without Driver |
Net Weight | 525g |
Touchscreen | without |
Signal Type/interface Type | LVDS (2 ch, 8-bit),30 pins |
Voltage Supply | +3.3 V |
Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
Package |
TIANMA Original package; 14 pcs/ctn; size : 530(L) x 430(W) x 274(H) mm |
