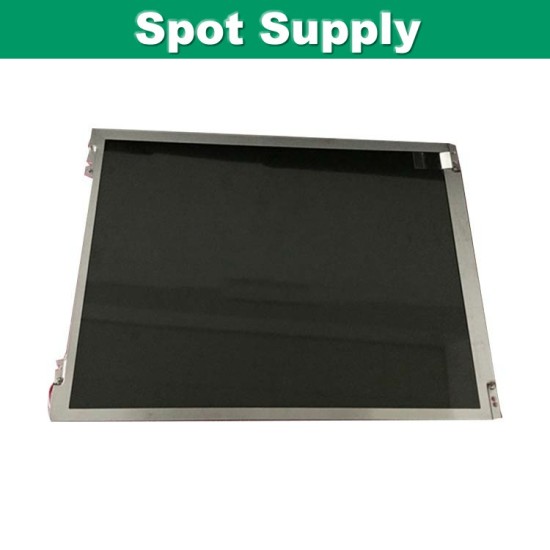

TIANMA 10.4 inch 800x600 TFT LCD Screen TM104SDH01-00 with 400nit and 20 pin LVDS
- Stock: In Stock
- Model: TM104SDH01-00
- Weight: 0.75kg
- Dimensions: 32.00cm x 22.00cm x 9.00cm
- SKU: TM104SDH01-00
- UPC: TM104SDH01-0
- JAN: TM104SDH01-00
- ISBN: TM104SDH01-00
- MPN: TM104SDH01-00
Products Sold: 0
Product Views: 57
$999.99
Ex Tax: $999.99
Price in reward points: 22
Manufacturer | TIANMA |
Model Name | TM104SDH01-00 |
Screen Size | 10.4 inch |
Pixel Number | 800(RGB)×600,SVGA |
Active Area(mm) | 211.20 x 158.40mm (H×V) |
Outline(mm) | 236.00 x 176.90 x 5.60 (H×V×D) |
Pixel pitch(mm)
|
0.264 x 0.264 (H×V) |
Treatment |
Anti-Glare(3H)
|
Luminance | 400 cd/m² (Typ.) |
Contrast Ratio | 400 : 1 (Typ.) (TM) |
Viewing Angle | 70/70/60/70(CR≥10) Left / Right/UP /Down |
Response | 10/15 (Typ.)(Tr/Td) ms |
Work Mode | TN,Normally white, Transmissive |
Color Depth | 262K , 50% NTSC |
Backlight | WLED,30K hours ,without driver |
Net Weight | 288g |
Touchscreen | without |
Signal Type/interface Type | LVDS (1 ch, 6-bit),20 pins |
Voltage Supply | 3.3V |
Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
Package |
AUO Original Package; 25 pcs/ctn; weight : 10.3Kgs; size : 530(L)mm x 350(W)mm x 250(H)mm |
Tags:
TM104SDH01-00
