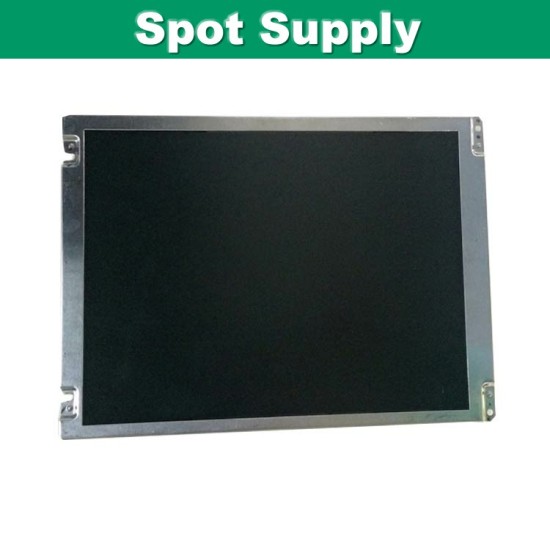

TIANMA 10.4 inch 800x600 TFT LCD Panel TM104SDH02 with 400 nits and LVDS 20 pin

TIANMA 10.4 inch 800x600 TFT LCD Panel TM104SDH02 with 400 nits and LVDS 20 pin
TIANMA 10.4 inch 800x600 TFT LCD Panel TM104SDH02 with 400 nits and LVDS 20 pin
  • Stock: In Stock
  • Model: TM104SDH02
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: TM104SDH02
  • UPC: TM104SDH02
  • JAN: TM104SDH02
  • ISBN: TM104SDH02
  • MPN: TM104SDH02
Products Sold: 0
Product Views: 50
$999.99
Ex Tax: $999.99
Price in reward points: 34
Manufacturer  TIANMA
Model Name TM104SDH02
Screen Size 10.4 inch
Pixel Number 800(RGB)×600, SVGA
Active Area(mm) 211.20 x 158.40 (H×V)
Outline(mm) 243.00 x 179.40 x 8.50 (H×V×D)
Pixel Pitch(mm) 00.264 x 0.264 (H×V)
Treatment
Anti-Glare(3H)
Luminance 400 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (TM)
Viewing Angle 70/70/60/70(CR≥10) Left / Right/UP /Down
Response 10/15 (Typ.)(Tr/Td) ms
Work Mode TN,Normally white, Transmissive
Color Depth 262K/16.7M,50% NTSC
Backlight WLED,50K hours,without driver
Net Weight 437g
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6/8-bit),20 pins
Voltage Supply 3.3V
Max. Ratings Storage Temp.: -30 ~ +85 (°C)
Operating Temp.: -30 ~ +8(°C)
Package TIANMA original package;
20 pcs/ctn;
weight : TBD;
size : 530(L)mm x 350(W)mm x 250(H)mm
