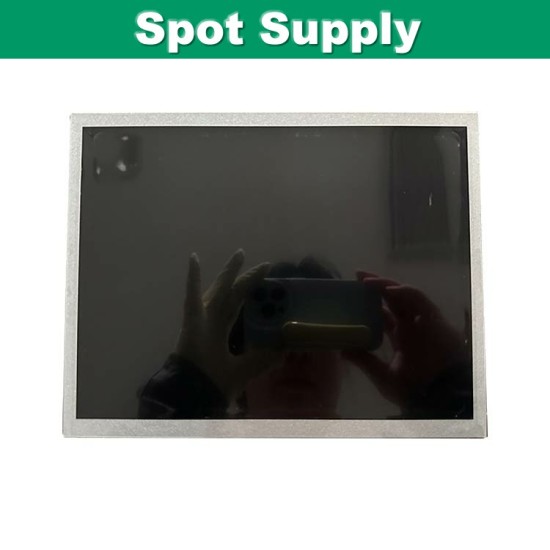

AUO 10.4 Inch 800x600 LCD Panel TFT High Brightness Display 700nits G104STN01.6 LVDS 20pins

AUO 10.4 Inch 800x600 LCD Panel TFT High Brightness Display 700nits G104STN01.6 LVDS 20pins
AUO 10.4 Inch 800x600 LCD Panel TFT High Brightness Display 700nits G104STN01.6 LVDS 20pins
  • Stock: In Stock
  • Brand: AUO
  • Model: G104STN01.6
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: G104STN01.6
  • UPC: G104STN01.6
  • JAN: G104STN01.6
  • ISBN: G104STN01.6
  • MPN: G104STN01.6
Products Sold: 0
Product Views: 93
0 reviews - Write a review
$999.99
Ex Tax: $999.99
Price in reward points: 22
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Manufacturer  AUO
Model Name G104STN01.6
Screen Size 10.4 inch
Pixel Number 800(RGB)×480, WVGA
Active Area(mm) 2112 × 158.4 (H×V)
Outline(mm） 227.3 × 177.5 × 9.3 (H×V×D)
Pixel Pitch(mm) 0.264 × 0.264 (H×V)
Treatment Anti-glare,Harddness 3H
Luminance 700 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (TM)
Viewing Angle 80/80/60/70(CR≥10) Left / Right/UP /Down
Response time 11/5 (Typ.)(Tr/Td) ms
Display Mode TN,Normally white,Transmissive
Color Depth 262K/16.7M,50% NTSC
Backlight WLED,50K hour s, with LED Driver
Net Weight 294g
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6/8-bit),20 pins
Voltage Supply +3.3 V
Max. Ratings Storage Temp.: -30 ~ +80 (°C)
Operating Temp.: -30 ~ +80 (°C)
Package AUO Original package;
20 pcs/ctn;
weight : 8.48Kgs;
size : 450(L) x 275(W) x 320(H)mm
