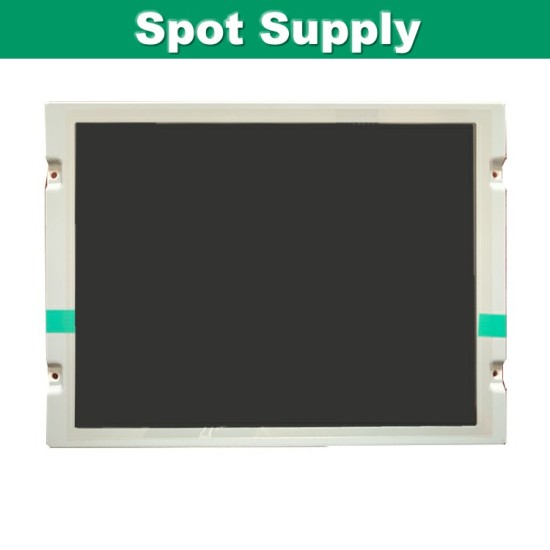

Kyocera 8.4 inch IPS TFT LCD Panel TCG084XGLxxPNN-xNxx-Sx01 with 1000 nits high brightness
- Stock: In Stock
- Brand: SEAWENS
- Model: TCG084XGLxxPNN-xNxx-Sx01
- Weight: 0.75kg
- Dimensions: 32.00cm x 22.00cm x 9.00cm
- SKU: TCG084XGLxxPNN-xNxx-Sx01
- UPC: TCG084XGLxxP
- JAN: TCG084XGLxxPN
- ISBN: TCG084XGLxxPNN-xN
- MPN: TCG084XGLxxPNN-xNxx-Sx01
Products Sold: 0
Product Views: 27
$999.99
Ex Tax: $999.99
Price in reward points: 27
Manufacturer | Kyocera |
Model Name | TCG084XGLxxPNN-xNxx-Sx01 |
Screen Size | 8.4 inch |
Pixel Number | 1024(RGB)×768, XGA |
Active Area(mm) | 170.8032(W) x 128.1024(H) |
Outline(mm) | 199.5(W) x 149(H) x 10.5(D)mm |
Dot pitch(mm) | (0.1668)(W)x(0.1668)(H) |
Treatment | Anti-Glare treatment |
Luminance | 1000 cd/m² (Typ.) |
Contrast Ratio | 600 : 1 (Typ.) (TM) |
Viewing Angle | 85/85/85/85 (Typ.) |
Response time | 12/11 (Typ.)(Tr/Td) ms |
Display Mode | AWV, Normally black |
Color Depth | 262K/16.7M |
Backlight | WLED, 50K hours,without driver |
Net Weight | TBD |
Touchscreen | without |
Interface | LVDS (1 ch, 6/8-bit),20 pins |
Voltage Supply | 3.3V |
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~80 °C |
Package | Kyocera Original Package |
Tags:
TCG084XGLxxPNN-xNxx-Sx01
