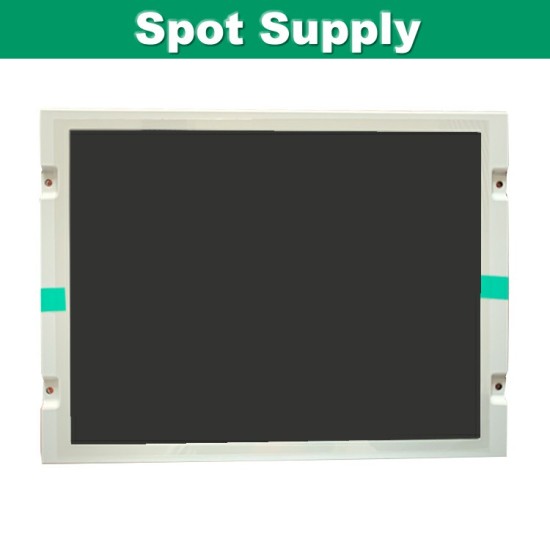

Kyocera 8.4 inch 800x600 TFT LCD Screen TCG084SVLPAANN-AN20-S with 400 nits and LVDS

Kyocera 8.4 inch 800x600 TFT LCD Screen TCG084SVLPAANN-AN20-S with 400 nits and LVDS
Kyocera 8.4 inch 800x600 TFT LCD Screen TCG084SVLPAANN-AN20-S with 400 nits and LVDS
  • Stock: In Stock
  • Brand: SEAWENS
  • Model: TCG084SVLPAANN-AN20-S
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: TCG084SVLPAANN-AN20-S
  • UPC: TCG084SVLPAA
  • JAN: TCG084SVLPAAN
  • ISBN: TCG084SVLPAANN-AN
  • MPN: TCG084SVLPAANN-AN20-S
Products Sold: 0
Product Views: 14
$999.99
Ex Tax: $999.99
Price in reward points: 31
Manufacturer  Kyocera
Model Name TCG084SVLPAANN-AN20-S
Screen Size 8.4 inch
Pixel Number 800(RGB)×600,SVGA
Active Area(mm)
170.4(W)×127.8(H)
Outline(mm)
199.5(W)×(147.4)(H)×9(D)
Dot pitch(mm)
0.071(W)×0.213(H)
Polarizer
Anti-Glare treatment
Luminance 400 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (TM)
Viewing Angle 80/80/80/60 (Typ.)
Response 8/22 (Typ.)(Tr/Td) ms
Work Mode TN, Normally white, Transmissive
Color Depth 16.2M,51% NTSC
Backlight WLED, 50K hours, with LED Driver
Net Weight 315g
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 8-bit),30 pins
Voltage Supply 3.3V
Max. Ratings Storage Temp.: -30 ~ +80 (°C)
Operating Temp.: -20 ~ +70 (°C)
Package Kyocera original package
