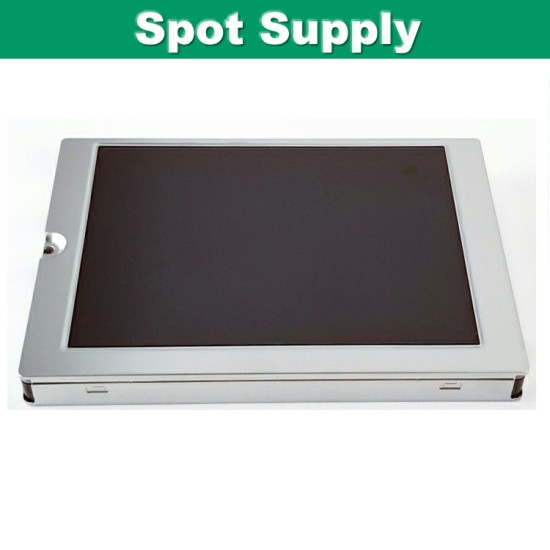

Kyocera 5.7 inch 320x240 TFT LCD Panel for Industry TCG057QVLCS-H50 with high brightness 1000 nits

Kyocera 5.7 inch 320x240 TFT LCD Panel for Industry TCG057QVLCS-H50 with high brightness 1000 nits
Kyocera 5.7 inch 320x240 TFT LCD Panel for Industry TCG057QVLCS-H50 with high brightness 1000 nits
  • Stock: In Stock
  • Brand: SEAWENS
  • Model: TCG057QVLCS-H50
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: TCG057QVLCS-H50
  • UPC: TCG057QVLCS-
  • JAN: TCG057QVLCS-H
  • ISBN: TCG057QVLCS-H50
  • MPN: TCG057QVLCS-H50
Products Sold: 0
Product Views: 26
$999.99
Ex Tax: $999.99
Price in reward points: 20
Manufacturer  Kyocera
Model Name TCG057QVLCS-H50
Screen Size 5.7 inch
Pixel Number 320(RGB)×240,QVGA
Active Area(mm) 115.2(W) x 86.4(H)
Outline(mm) 144(W) x 104.8(H) x 13.0(D)
Dot pitch(mm) 0.12(W) x 0.36(H)
Polarizer Glare treatment
Luminance 1000 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)
Response 10/25 (Typ.)(Tr/Td) ms
Work Mode TN, Normally white, Transmissive
Color Depth 262K , 60% NTSC
Backlight WLED, 50K hours,without Driver
Net Weight 210g
Touchscreen without
Signal Type/interface Type Parallel RGB (1 ch, 6-bit) ,33 pins
Voltage Supply 3.3V
Max. Ratings Storage Temp.: -30 ~ +80 (°C)
Operating Temp.: -20 ~ +70 (°C)
Package Kyocera original package
