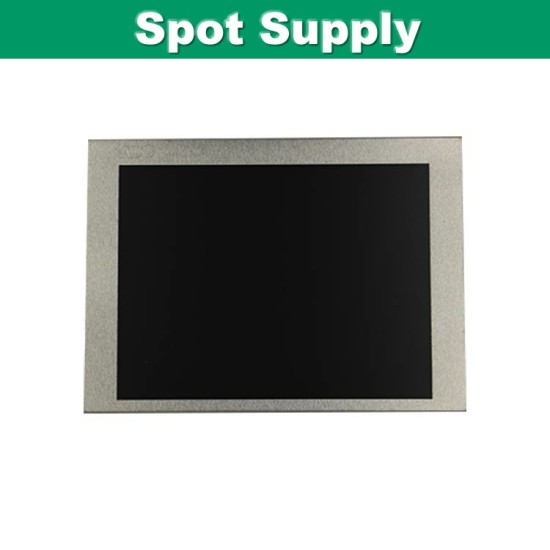

Kyocera 5.7 Inch 640x480 VGA LCD Panel TFT RGB Screen TCG057VGLCCANN-GN00 for industry
- Stock: In Stock
- Brand: SEAWENS
- Model: TCG057VGLCCANN-GN00
- Weight: 0.75kg
- Dimensions: 32.00cm x 22.00cm x 9.00cm
- SKU: TCG057VGLCCANN-GN00
- UPC: TCG057VGLCCA
- JAN: TCG057VGLCCAN
- ISBN: TCG057VGLCCANN-GN
- MPN: TCG057VGLCCANN-GN00
Products Sold: 0
Product Views: 53
$999.99
Ex Tax: $999.99
Price in reward points: 28
Manufacturer | Kyocera |
Model Name | TCG057VGLCCANN-GN00 |
Screen Size | 5.7 inch |
Pixel Number | 640(RGB)×480,VGA |
Active Area(mm) | 115.2 × 86.4 (H×V) |
Outline(mm) | 127.2 ×100.4 × 5.7 (H×V×D) |
Pixel Pitch(mm) | 0.06 × 0.18 (H×V) |
Treatment | Glare |
Luminance | 250 cd/m² (Typ.) |
Contrast Ratio | 500 : 1 (Typ.) (TM) |
Viewing Angle | 80/80/80/80 (CR≥10) Left / Right/UP /Down |
Response time | 10/25 (Typ.)(Tr/Td) ms |
Display Mode | TN,Normally white,Transmissive |
Color Depth | 262K/16.7M |
Backlight | WLED, 40K hours |
Net Weight | 110g |
Touchscreen | without |
Signal Type/interface Type | Parallel RGB (1 ch, 6/8-bit),50 pins |
Voltage Supply | +3.3V |
Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -30 ~ +70 (°C) |
Package | Kyocera Original package |
