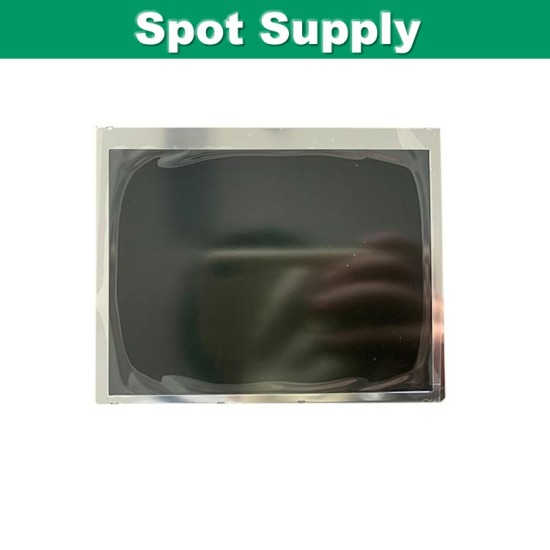

Kyocera 5.7 Inch 640x480 VGA LCD Panel 30 pins LVDS Display For Industry TCG057VGLAAANN-GN20
- Stock: In Stock
- Brand: SEAWENS
- Model: TCG057VGLAAANN-GN20
- Weight: 0.75kg
- Dimensions: 32.00cm x 22.00cm x 9.00cm
- SKU: TCG057VGLAAANN-GN20
- UPC: TCG057VGLAAA
- JAN: TCG057VGLAAAN
- ISBN: TCG057VGLAAANN-GN
- MPN: TCG057VGLAAANN-GN20
Products Sold: 0
Product Views: 20
$999.99
Ex Tax: $999.99
Price in reward points: 23
Manufacturer | Kyocera |
Model Name | TCG057VGLAAANN-GN20 |
Screen Size | 5.7 inch |
Pixel Number | 640(RGB)×480,VGA |
Active Area(mm) | 115.2 x 86.4 (H×V) |
Outline(mm) | 127.2 x 100.4 x 6 (H×V×D) |
Treatment | Anti-glare, Hard coating (3H) |
Luminance | 450 cd/m² (Typ.) |
Contrast Ratio | 500 : 1 (Typ.) (TM) |
Viewing Angle | 80/80/80/80 CR≥10) Left / Right / Up / Down |
Response | 10/25 (Tr/Td) ms |
Work Mode | TN,Normal white |
Backlight | WLED, 50K hours,with LED Driver |
Net Weight | 110g |
operating frequency | 60Hz |
Touchscreen | without |
Signal Type/interface Type | LVDS (1 ch, 6-bit),30 pins |
Voltage Supply | +3.3 V (Typ.) |
Temperature |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
Package |
Kyocera original packge; As request |
