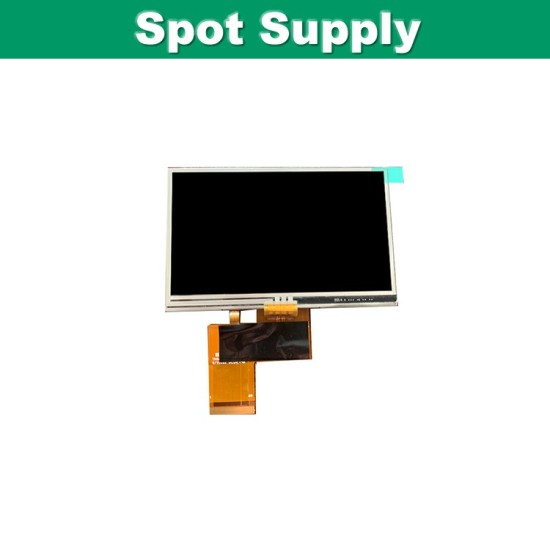

Kyocera 4.2 inch TFT LCD Screen TCG042AALPBVNN-AN01 with 480*272 and 700 nits

Kyocera 4.2 inch TFT LCD Screen TCG042AALPBVNN-AN01 with 480*272 and 700 nits
Kyocera 4.2 inch TFT LCD Screen TCG042AALPBVNN-AN01 with 480*272 and 700 nits
  • Stock: In Stock
  • Brand: SEAWENS
  • Model: TCG042AALPBVNN-AN01
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: TCG042AALPBVNN-AN01
  • UPC: TCG042AALPBV
  • JAN: TCG042AALPBVN
  • ISBN: TCG042AALPBVNN-AN
  • MPN: TCG042AALPBVNN-AN01
Products Sold: 0
Product Views: 18
$999.99
Ex Tax: $999.99
Price in reward points: 26
Manufacturer  Kyocera
Model Name TCG042AALPBVNN-AN01
Screen Size 4.2 inch
Pixel Number 480(RGB)×272 (WQVGA)
Active Area(mm)
92.88(W)×52.632(H)
Outline(mm)
107.7(W)×67.0(H)×8.4(D)
Dot pitch(mm)
0.0645(W)×0.1935(H)
Polarizer
Anti-Glare treatment
Luminance 700 cd/m² (Typ.)
Contrast Ratio 1200 : 1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)
Response time 13/14 (Typ.)(Tr/Td) ms
Work Mode AWV, Normally black, Transmissive
Color Depth 262K
Backlight WLED, 50K hours,without Driver
Net Weight 82g
Touchscreen without
Signal Type/interface Type Parallel RGB (1 ch, 6/8-bit),50 pins
Voltage Supply +3.3V
Max. Ratings Storage Temp.: -30 ~ +80 (°C )
Operating Temp.: -20 ~+70 (°C)
Package Original packaging
