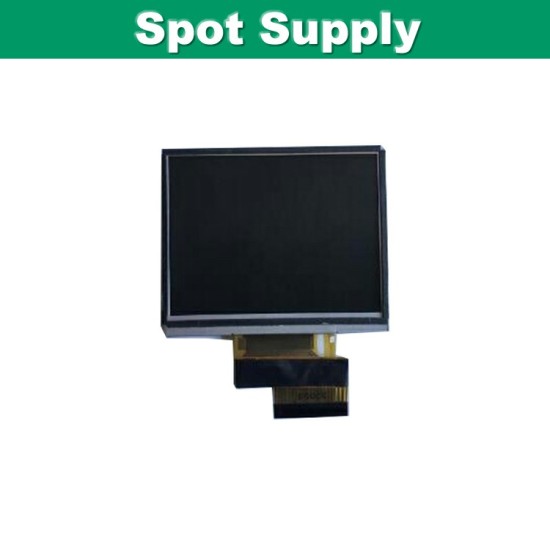

Kyocera 3.5 inch TFT LCD screen TCG035QVLPDANN-GN50-S with 1000 nits high brightness
- Stock: In Stock
- Brand: SEAWENS
- Model: TCG035QVLPDANN-GN50-S
- Weight: 0.75kg
- Dimensions: 32.00cm x 22.00cm x 9.00cm
- SKU: TCG035QVLPDANN-GN50-S
- UPC: TCG035QVLPDA
- JAN: TCG035QVLPDAN
- ISBN: TCG035QVLPDANN-GN
- MPN: TCG035QVLPDANN-GN50-S
Products Sold: 0
Product Views: 26
$999.99
Ex Tax: $999.99
Price in reward points: 21
Manufacturer | Kyocera |
Model Name | TCG035QVLPDANN-GN50-S |
Screen Size | 3.5 inch |
Pixel Number | 320(RGB)×240 (QVGA) |
Active Area(mm) | 70.56(W)x52.92(H) |
Outline(mm) | 76.9(W)x63.9(H)x4.9(D) |
Dot pitch(mm) | 0.0735(W)x0.2205(H) |
Treatment | Glare treatment |
Luminance | 1000 cd/m² (Typ.) |
Contrast Ratio | 1000 : 1 (Typ.) (TM) |
Viewing Angle | 80/80/80/60 (Typ.) |
Response | 8/22 (Typ.)(Tr/Td) ms |
Work Mode | TN, Normally white, Transmissive |
Color Depth | 16.7M,50% NTSC |
Backlight | WLED, 40K hours,without driver |
Net Weight | 45g |
Touchscreen | without |
Signal Type/interface Type | Parallel RGB (1 ch, 8-bit) + SPI,FPC,50 pins |
Voltage Supply | 3.3V |
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~70 °C |
Package | Kyocera original packaging |
