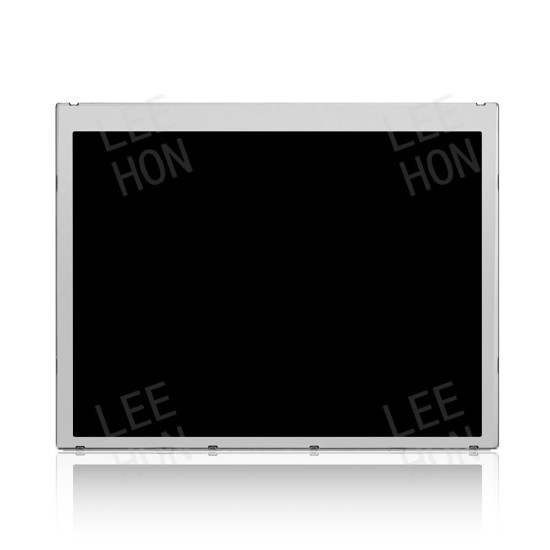

Kyocera 12.1 Inch 1024x768 LC IPS Panel TFT High Brightness 1200nits Display TCG121XGLPBPNN-AN40
- Stock: In Stock
- Brand: SEAWENS
- Model: TCG121XGLPBPNN-AN40
- Weight: 0.75kg
- Dimensions: 32.00cm x 22.00cm x 9.00cm
- SKU: TCG121XGLPBPNN-AN40
- UPC: TCG121XGLPBP
- JAN: TCG121XGLPBPN
- ISBN: TCG121XGLPBPNN-AN
- MPN: TCG121XGLPBPNN-AN40
Products Sold: 0
Product Views: 23
$999.99
Ex Tax: $999.99
Price in reward points: 21
Manufacturer | Kyocera |
Model Name | TCG121XGLPBPNN-AN40 |
Screen Size | 12.1 Inch |
Pixel Number | 1024(RGB)×768,XGA |
Active Area(mm) | 245.76 × 184.32 (H×V) |
Outline(mm) | 260.5 × 203 × 10.4 (H×V×D) |
Pixel Pitch(mm) | 0.08 × 0.24 (H×V) |
Treatment | Anti-Glare |
Luminance | 1200 cd/m² (Typ.) |
Contrast Ratio | 750 : 1 (Typ.) (TM) |
Viewing Angle | 85/85/85/85 (CR≥10) Left / Right/UP /Down |
Response time | 18/12 (Typ.)(Tr/Td) ms |
Display Mode | AWV,Normally black , Transmissive |
Color Depth | 262K/16.2M,51% NTSC |
Backlight | WLED,70K hours , with LED Driver |
Net Weight | 555g |
Touchscreen | without |
Signal Type/interface Type | LVDS (1 ch, 6/8-bit),20 pins |
Voltage Supply | +3.3 V |
Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -30 ~ +80 (°C) |
Package | Kyocera Original package |
