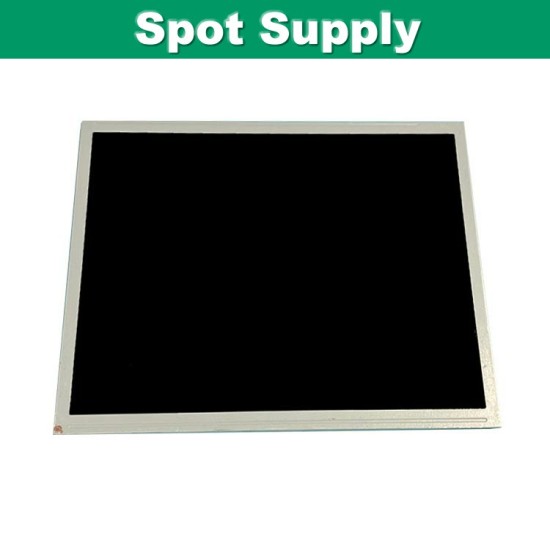

Kyocera 10.4 inch 800x600 TFT LCD Panel LVDS Screen For Industry TCG104SVLPAANN-AN20 450nits
- Stock: In Stock
- Brand: SEAWENS
- Model: TCG104SVLPAANN-AN20
- Weight: 0.75kg
- Dimensions: 32.00cm x 22.00cm x 9.00cm
- SKU: TCG104SVLPAANN-AN20
- UPC: TCG104SVLPAA
- JAN: TCG104SVLPAAN
- ISBN: TCG104SVLPAANN-AN
- MPN: TCG104SVLPAANN-AN20
Products Sold: 0
Product Views: 14
$999.99
Ex Tax: $999.99
Price in reward points: 22
Manufacturer | Kyocera |
Model Name | TCG104SVLPAANN-AN20 |
Screen Size | 10.4 inch |
Pixel Number | 800(RGB)×600,SVGA |
Active Area(mm) | 211.2 x 158.4 (H×V) |
Outline(mm) | 240.7 x 180.2 x 9.0 (H×V×D) |
Pixel Pitch(mm) | 0.088 x 0.264 (H×V) |
Treatment |
Anti-Glare
|
Luminance | 450 cd/m² (Typ.) |
Contrast Ratio | 900 : 1 (Typ.) (TM) |
Viewing Angle | 80/80/80/60(CR≥10) Left / Right/UP /Down |
Response time | 8/22 (Typ.)(Tr/Td) ms |
Display Mode | TN,Normally white,Transmissive |
Color Depth | 262K/16.7M,51% NTSC |
Backlight | WLED,70K hours , with LED Driver |
Net Weight | 460g |
Touchscreen | without |
Signal Type/interface Type | LVDS (1 ch, 6/8-bit),30 pins |
Voltage Supply | +3.3 V |
Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
Package | Kyocera Original package |
Tags:
TCG104SVLPAANN-AN20
