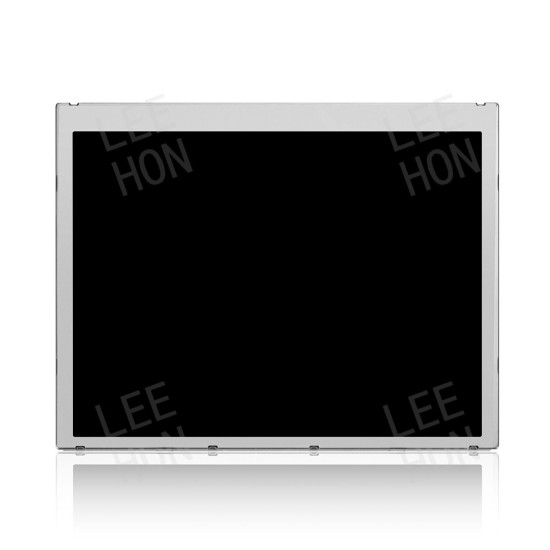

Kyocera 10.4 Inch 1024x768 XGA LCD Panel TFT IPS LVDS Display TCG104XGLPAPNN-AN40 1300nits High Brightness

Kyocera 10.4 Inch 1024x768 XGA LCD Panel TFT IPS LVDS Display TCG104XGLPAPNN-AN40 1300nits High Brightness
Kyocera 10.4 Inch 1024x768 XGA LCD Panel TFT IPS LVDS Display TCG104XGLPAPNN-AN40 1300nits High Brightness
  • Stock: In Stock
  • Brand: SEAWENS
  • Model: TCG104XGLPAPNN-AN40
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: TCG104XGLPAPNN-AN40
  • UPC: TCG104XGLPAP
  • JAN: TCG104XGLPAPN
  • ISBN: TCG104XGLPAPNN-AN
  • MPN: TCG104XGLPAPNN-AN40
Products Sold: 0
Product Views: 26
$999.99
Ex Tax: $999.99
Price in reward points: 32
Manufacturer Kyocera
Model Name TCG104XGLPAPNN-AN40
Screen Size 10.4 inch
Pixel Number 1024(RGB)×768,XGA
Active Area(mm) 210.432 × 157.824 (H×V)
Outline(mm) 230 × 180.2 × 10.5 (H×V×D)
Bezel Area(mm) 0.0685 × 0.2055 (H×V)
Treatment Anti-glare
Luminance 1300 cd/m² (Typ.)
Contrast Ratio 700 : 1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (CR≥10) Left / Right / Up / Down
Response 18/12 (Typ.)(Tr/Td) ms
Work Mode AWV,Normally black,transmissive
Color Depth 262K/16.7M,51% NTSC
Backlight WLED,70K hours,with LED Driver
Net Weight 480g (Typ.)
operating frequency 60Hz
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6/8-bit),20 pins
Voltage Supply +3.3 V (Typ.)
Temperature Storage Temp.: -30 ~ +80 (°C)
Operating Temp.: -30 ~ +80 (°C)
Package Kyocera original package
