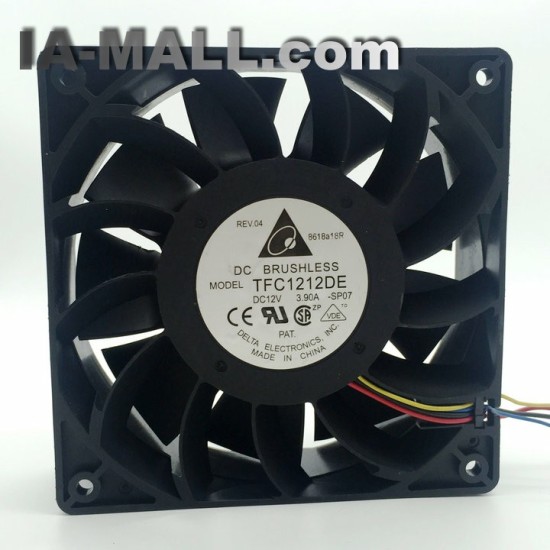

Delta TFC1212DE DC12V 5200RPM 252CFM AXIAL cooling Fan
- Stock: In Stock
- Brand: DELTA
- Model: TFC1212DE
- Weight: 1.00kg
- Dimensions: 36.00cm x 26.00cm x 9.00cm
- SKU: TFC1212DE
- UPC: TFC1212DE
- JAN: TFC1212DE
- ISBN: TFC1212DE
- MPN: TFC1212DE
Products Sold: 0
Product Views: 146
$11.99
Ex Tax: $11.99
Price in reward points: 20
- 1x Delta TFC1212DE-PWM, 120x38mm-4pin PWM+Tac Sensor, 252.8 cfm Most Powerful in 120x38mm form factor!
- This fan is the equivalent spec with,only with PWM control.
- PWM fan connector you can let your motherboard keep this fan running at minimal speeds and still have the high end for those times when you really need it.
Features :
- Extreme high airflow and static pressure
- 4 wire with PWM Control
- Speed sensor (Tach Out Put)
- The most powerful in 120x38mm form factor!
- Note: Please make sure your board can handle the power consume by this fan.
Manufacture / Brand | Delta |
Model / Part Number | TFC1212DE-SP07 |
Size / Dimension | 120mm x 120mm x 38mm |
Rated Voltage | 12 VDC |
Rated Current | 4.0 Amp |
Rated Input Power | – Watt |
Fan Speed | 5500 R.P.M. (Revolutions per minute) |
Maximum Air Flow | 252.8 CFM (Cubic feet per minute) |
Noise Level | 66 dB-A |
Maximum Air Pressure | 35.88 mmH2O |
Bearing Type | Ball |
Termination | 12? with 4 Wire Leads |
Power Connector | 4pin |
Function/Features | PWM control/Speed Sensor (Tach Out Put) |
RoHS Status | RoHS Compliant |
Operating Temperature | – |
Life Expectancy | – |
Data Sheet | |
Unit Weight | 0.66 lb (10.5oz) |
