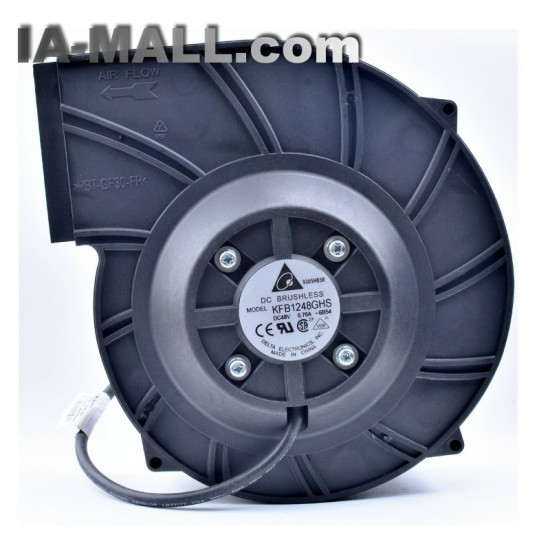

Delta KFB1248GHS 180mm 48V blower industry cooling turbo fan

Brand: Delta

Model: KFB1248GHS

Voltage: DC 48V

Current: 0.76A

Plug: 4 wire plug PWM

Bearing: double ball bearing

Size: 180*170*80MM

Air volume: 334.79CFM

Wind pressure: 47.86mmH2O

Bearing method: double ball

Noise: 67.5dBA

Speed: 3300RPM

4-wire with speed measurement for vehicles, refrigerators and other equipment.

The nominal current is 0.76A, and the actual running test current is about 0.5A, and the air volume is large.

The fan voltage can be operated at 20V. The test is as follows:

Voltage 20V = current 0.2A.

Voltage 24V = current 0.26A.

Voltage 36V = current 0.38A.

Of course, when the voltage is low, the air volume is small and the wind is very light.

Dimensions 180mm x 175mm x 75mm and weighs approximately 800 grams.
