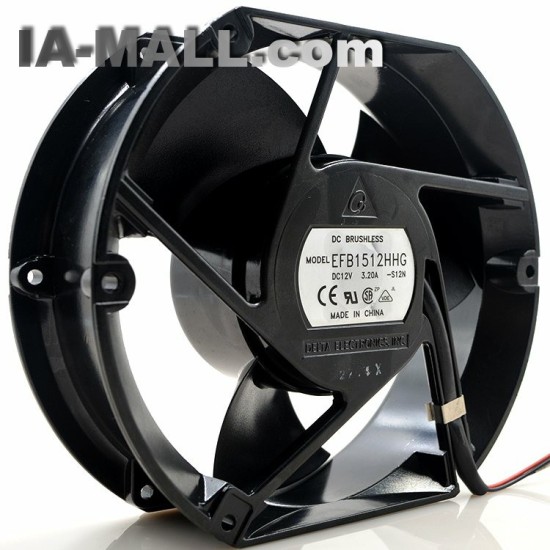

Delta EFB1512HHG 170*150*51MM 12V 2A cooling fan

Brand: Taiwan Delta
Model: EFB1512HHG
Lead: 3 pin
Size: 172 * 150 * 51mm
Voltage: DC 12V
Voltage range: 8 ~ 14V
Current: 3.20A
Speed: 3700 RPM
Air volume: 279.69 CFM 7.920m3 / min
Wind pressure: 0.800 IN H2O
Noise: 57.5 d-BA
Temperature range: -30: 80 ° C
Expected life: L10 estimated life 80,000 hours at 40 ° C
Bearing structure: Maintenance-free double ball bearing
Direction of rotation: The wind is discharged from the bracket and rotates counterclockwise facing the rotor
Motor protection: Staggered protection and stall locked current protection
Material: metal frame, high temperature resistance, glass fiber reinforced plastic PA blade, environmental protection certification
Features: Maintenance-free double ball bearings, super long service life, with sufficient cooling air volume and wind pressure
