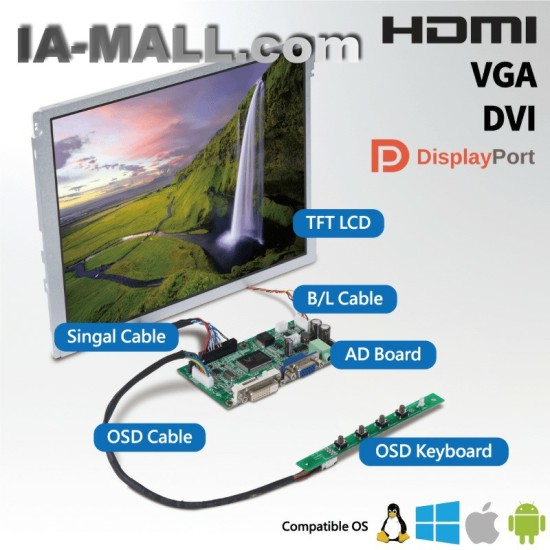

BOE 12.1 Inch 1024x768 XGA TFT LCD Panel IPS Display PV121X0M-N10 500nits and LVDS 20 Pin

BOE 12.1 Inch 1024x768 XGA TFT LCD Panel IPS Display PV121X0M-N10 500nits and LVDS 20 Pin
BOE 12.1 Inch 1024x768 XGA TFT LCD Panel IPS Display PV121X0M-N10 500nits and LVDS 20 Pin
  • Stock: In Stock
  • Brand: BOE
  • Model: PV121X0M-N10
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: PV121X0M-N10
  • UPC: PV121X0M-N10
  • JAN: PV121X0M-N10
  • ISBN: PV121X0M-N10
  • MPN: PV121X0M-N10
Products Sold: 0
Product Views: 71
0 reviews - Write a review
$999.99
Ex Tax: $999.99
Price in reward points: 26
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Manufacturer  BOE
Model Name PV121X0M-N10
Screen Size 12.1 INCH
Pixel Number 1024(RGB)×768,XGA
Active Area(mm) 245.76 x 184.32 (H×V)
Outline(mm） 260.5 x 204 x 8.7 (H×V×D)
Pixel Pitch(mm) 0.08 x 0.24 (H×V)
Arrangement
RGB Vertical stripe
Luminance 500 cd/m² (Typ.)
Contrast Ratio 1200 : 1 (Typ.) (TM)
Viewing Angle 86/86/86/86 (CR≥10) Left / Right/UP /Down
Response time 30 (Typ.)(Tr/Td) ms
Display Mode ADS,Normally black,Transmissive
Color Depth 16.7M,72% NTSC
Backlight WLED,50K hours , with LED Driver
Net Weight TBD
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 8-bit),20 pins
Voltage Supply +3.3 V
Max. Ratings Storage Temp.: -30 ~ +80 (°C)
Operating Temp.: -20 ~ +70 (°C)
Package BOE Original package;
18 pcs/ctn;
size : 607mm(W) x 507mm(D) x 240mm(H)
