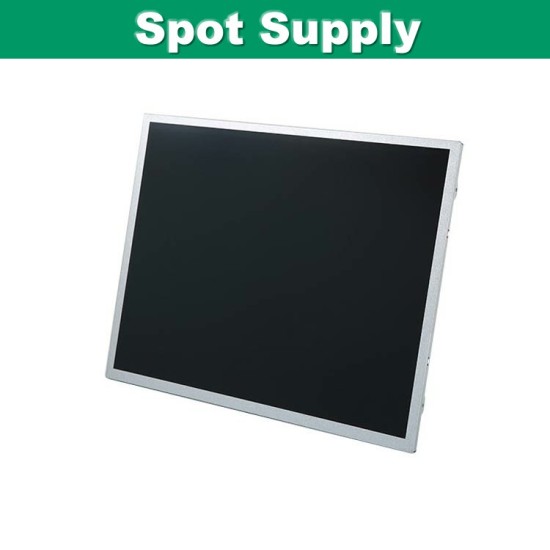

AUO 15 Inch 1024x768 XGA LCD Panel TFT High Brightness Display G150XTN06.B 800nits and LVDS 20pins

AUO 15 Inch 1024x768 XGA LCD Panel TFT High Brightness Display G150XTN06.B 800nits and LVDS 20pins
AUO 15 Inch 1024x768 XGA LCD Panel TFT High Brightness Display G150XTN06.B 800nits and LVDS 20pins
  • Stock: In Stock
  • Brand: AUO
  • Model: G150XTN06.B
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: G150XTN06.B
  • UPC: G150XTN06.B
  • JAN: G150XTN06.B
  • ISBN: G150XTN06.B
  • MPN: G150XTN06.B
Products Sold: 0
Product Views: 87
0 reviews - Write a review
$999.99
Ex Tax: $999.99
Price in reward points: 21
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Manufacturer AUO
Model Name G150XTN06.B
Screen Size 15 inch
Pixel Number 1024(RGB)×768,XGA
Active Area(mm) 304.128 × 228.096 (H×V)
Outline(mm） 326.5 × 253.5 × 10 (H×V×D)
Bezel Area(mm) 311.9 × 236.85 (H×V)
Treatment Anti-glare,Hardness 3H
Luminance 800 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (TM)
Viewing Angle 80/80/70/80 (CR≥10)
Left/Right/UP/Down
Response 5.7/2.3 (Typ.)(Tr+Td) ms
Work Mode TN,Normally white,Transmissive
Color Depth 262K/16.2M,60% NTSC
Backlight WLED,50K hours,with LED Driver
Net Weight 1.00kgs (Typ.)
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 6/8bit),20 pins
Voltage Supply +3.3 V (Typ./Max.)
Max. Ratings Storage Temp.: -30 ~ +80 (°C)
Operating Temp.: -30 ~ +70 (°C)
Package AUO Original package;
14 pcs/ carton;
weight : 16.5Kgs;
size : 430(L) x 370(W) x 350(H)mm
