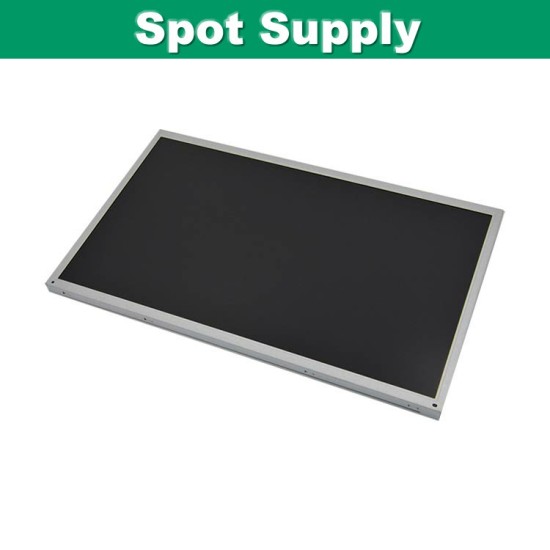

AUO 15.6 Inch 1366x768 WXGA LCD Panel TFT Display For industry G156XTN01.2 400nits and eDP 30pins

AUO 15.6 Inch 1366x768 WXGA LCD Panel TFT Display For industry G156XTN01.2 400nits and eDP 30pins
AUO 15.6 Inch 1366x768 WXGA LCD Panel TFT Display For industry G156XTN01.2 400nits and eDP 30pins
  • Stock: In Stock
  • Brand: AUO
  • Model: G156XTN01.2
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: G156XTN01.2
  • UPC: G156XTN01.2
  • JAN: G156XTN01.2
  • ISBN: G156XTN01.2
  • MPN: G156XTN01.2
Products Sold: 0
Product Views: 96
0 reviews - Write a review
$999.99
Ex Tax: $999.99
Price in reward points: 35
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Manufacturer  AUO
Model Name G156XTN01.2
Screen Size 15.6 inch
Pixel Number 1366(RGB)×768,WXGA
Active Area(mm) 344.232 × 193.536 (H×V)
Outline(mm） 363.8 × 215.9 ×9.07 (H×V×D)
Pixel Pitch(mm) 0.252 × 0.252 (H×V)
Treatment
Anti-Glare, 3H
Luminance 400 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (TM)
Viewing Angle 85/85/70/80 (CR≥10) Left / Right/UP /Down
Response time 10 (Typ.)(Tr/Td) ms
Display Mode TN,Normally white,Transmissive
Color Depth 16.7M,62% NTSC
Backlight WLED,50K hours , with LED Driver
Net Weight 860g
Touchscreen without
Signal Type/interface Type eDP (1 Lane),eDP1.2,30 pins
Voltage Supply +3.3 V
Max. Ratings Storage Temp.: -30 ~ +85 (°C)
Operating Temp.: -30 ~ +85 (°C)
Package AUO Original package;
16 pcs/ctn;
weight : 15.3Kgs;
Size : 450(H) x 375(W) x 319(H)mm
