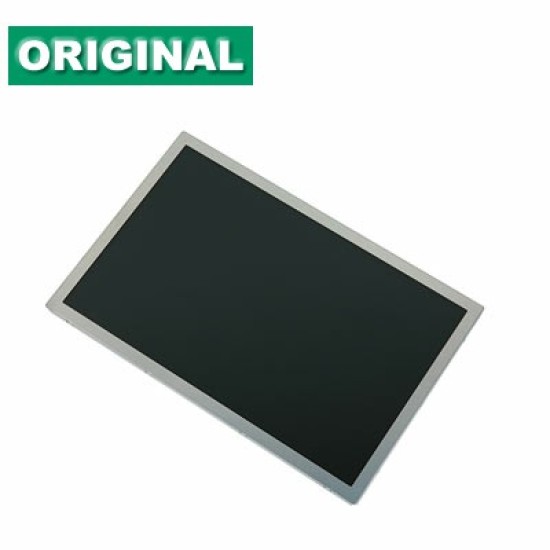

12.1inch TFT LCD 1280*800 display sunlight readable with 800

12.1inch TFT LCD 1280*800 display sunlight readable with 800
12.1inch TFT LCD 1280*800 display sunlight readable with 800
  • Stock: In Stock
  • Brand: mitsubishi
  • Model: AA121TD01
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: AA121TD01
  • UPC: AA121TD01
  • JAN: AA121TD01
  • ISBN: AA121TD01
  • MPN: AA121TD01
Products Sold: 0
Product Views: 57
$999.99
Ex Tax: $999.99
Price in reward points: 24
Manufacturer Mitsubishi
Model Name AA121TD01
Screen Size 12.1
Screen Type LCM, a-Si TFT-LCD
Pixel Number 1280(RGB)×800 (WXGA)
Arrangement RGB Vertical Stripe
Active Area(mm) 261.12×163.2(H×V)
Outline(mm) 283×185.1×10.2
Bezel Area(mm) 263.5×165.6(H×V)
Treatment Anti-glare, Hard coating (3H)
Luminance 800 cd/m² (Typ.)
Contrast Ratio 700 : 1 (Typ.) (TM)
Viewing Angle 80/80/80/60(CR≥10) Left / Right / Up / Down
Response 4/12 (Typ.)(Tr/Td) ms
Good View at 6 o’clock
Work Mode TN, Normally White, Transmissive
Color Depth 262K/16.7M  40% (CIE1931)
Backlight WLED, 100K hours, NO Driver
Net Weight 620g (Typ.)
Used for Industrial Application
operating frequency 60Hz
Touchscreen without
Signal Type/interface Type LVDS(1 ch, 6/8bit),20 pins,connector
Voltage Supply 3.3V (Typ.)
Max. Ratings Storage Temp.: -30 ~ 80 °C
Operating Temp.: -30 ~ 80 °C
Package As requirement
